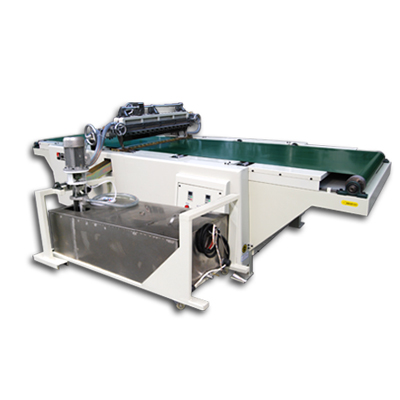

Automatic High Glossy Finish Curtain Coating Machine

Curtain coating machine
function: it draw-off the liquid paint from the paint box into the precise tool bit and down like the waterfull, when the board through the paint curtain on conveyor fast, it can coate the film evenly at least 0.008mm. This machine is usually apply to do the finish film coating with a full and beautiful effect.
Â�¢ application filed:
furniture, wardrobe, cupboard, floor, decoration, building insulation, etc.
Â�¢ application board:
solid wood board, ply, mdf, mfc, pb, glass, calcium silicate board, ceramic tiles, etc.
Â�¢ application paint:
uv, pe, pu, special paint, etc.
Technical parameters
optional working width 600mm800mm1300mm
max working thickness 100mm
min working length 300mm
working speed 0-110mmin
paint heating box 6kw, 150kg0kw, 50kg
6kw, 150kg0kw, 50kg
6kw, 150kg0kw, 50kg
full power
9kw3kw
9kw3kw 380v
10.4kw4.4kw
weight
850kg960kg1350kg
overall dimensions
4200*960*1550mm
4200*1160*1550mm
5000*1650*1550mm
main parts
electric motor unis
frequency converter shihlin
electrical appliance chint
conveyor ammerraal from holland
tool bit 1aluminum alloy
faq
1, do you have any service while order your products?
----yes,absolutely. We also free provide whole facotry layout design if you don't know how to plan.
support relative cost list and suited paint recommend.
2, what size of curtain coater is right for me?
----we provide size manily depend on the working width, standard in 600mm, 800mm, 1300mm,
also manufactrue customized.
3, after knowing the type, then which model is right for me?
----each type can equipt different devices for virous function. Pls kindly let me know your demands details, then I could recommend you right model with best price.
