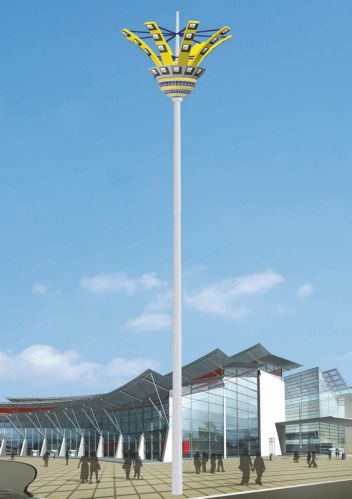

High Mast Lighting Pole, Brand Name : MEGATRO

We are offering high mast lighting pole.
High-mast lighting is a tall pole with lighting attached to the top pointing towards the ground, usually but not always used to light a highway or recreational field. The pole that the lighting is mounted on is generally at least 30 meters tall, while the lighting consists of a luminaire ring surrounding the pole with one or several independent lighting fixtures mounted around it. Some units have the lighting surrounded by a circular shield to prevent or reduce light pollution or light trespass from affecting neighbourhoods adjacent to the highway.
megatro provide high mast lighting poles with every shape are tailor made to our customer’s requirements. The high mast lighting height at least 30m, even higher, the masts shall be continuously tapered of polygonal cross section, presenting good visual appearance. Masts are often made to suit clients' particular requirements.
besides roadways, megatro high mast lighting is used in other sites requiring lighting over a large area:
1. Outdoor yard lighting, area lighting, petro-chemical plant, truck and bus terminal
2. Railway yardsship docksairportsprisonsparking lots
3. Industrial and commercial sites
4. Overhead power transmissionmonopole
5. Telecom antenna mounting, camera mounting
6. Signage for petrol pump
7. Telescopic tilting mast
megatro high mast lighting pole specification as follow:
1.material steel: chinese steel q235, q345, or astm a36, gr50, or stainless pipe or other material
2.finishing: hot dip galvanizing with zinc coat thickness 86 microns or powder coating
3 shape: tapered and non-tapered, octagonal, polygonal and round
4 height: 30m, or as per client requirement
5 length: within 14 meters once forming without slip joint.
6 thickness of bending plate: 2.5mm-65mm
7. Safety: 2.0 or as per design
8. Head frame point suspension type better for balancing of lantern ring
9. Aerodynamic shape and mechanically strong to face wind speed up to 180 kmh.
