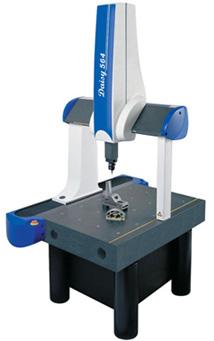

Daisy series CNC CMMs are state-of the-art new generation CMMs that features superior precision, high-performance and high stability. | |
 |  |
Daisy with its perfect style and rigidity features a lightweight closed framemoving bridge structure thereby offering the best stability at high speed motions. | |
 |  |
Daisy CMM has a unique 45° slant hollow granite bridge that offers excellent mechanical rigidity and stability. | |
 |  |
The Main l axis guideway of Daisy CMMs is a unique dove tails shaped guideway offering outstanding performance during high speed measurements. | |
 |  |
The Daisy CMMs are provided with advanced 3D measurement software, Renishaw probing system and feedback systems. |
Â
Model | Measuring range in mm | Measuring Error | Probing Error | Max Load |
MPEe (µm) | MPEp (µm) | Kgs | ||
564S-Manual | 500 x 600 x 400 | 3.0 + L / 250 | 3.5 | 500 |
564 | 500 x 600 x 400 | 2.8 + L / 250 | 3.2 | 500 |
686 | 600 x 800 x 600 | 3.0 + L / 250 | 3.5 | 800 |
8106 | 800 x 1000 x 600 | 3.0 + L / 250 | 3.5 | 1000 |
10128 | 1000 x 1200 x 800 | 3.5 + L / 250 | 4.5 | 1500 |
10158 | 1000 x 1500 x 800 | 3.5 + L / 250 | 4.5 | 1800 |
10208 | 1000 x 2000 x 800 | 3.5 + L / 250 | 4.5 | 2000 |
121510 | 1200 x 1500 x 1000 | 4.5 + L / 250 | 4.5 | 2200 |
12Y10 | 1200 x Y x 1000 | 4.5 + L / 250 | 4.5 | 2200 |
