High Performance Nozzle Heaters

MOQ5 Piece(s)
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We are one of the prominent Manufacturer, Supplier and Exporter of a wide assortment of PHP High Performance Nozzle Heaters. The High Performance Nozzle Heaters offered by us come with inbuilt....

View More Details

Send Enquiry

Product Details

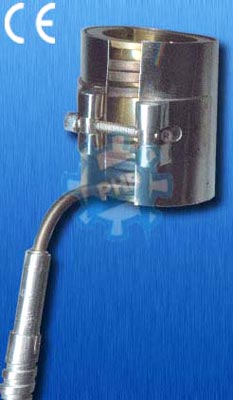

We are one of the prominent Manufacturer, Supplier and Exporter of a wide assortment of PHP High Performance Nozzle Heaters. The High Performance Nozzle Heaters offered by us come with inbuilt thermocouple and a rugged clamping offering high emissivity and physical strength. These High Performance Nozzle Heaters are good for sheath temperature up to 400oC. Our range of High Performance Heaters offers a max temp up to 250 Deg C. Besides, these heaters control sensitive materials like Nylon 66 with 40% glass filled accurately.

Features :

CE Certified
with built in Thermocouple
Very Robust Design
Higher Operating Temperature 400^oC
Negligible Effect of Material Spillage
Delivers Better & Even Heat Transfer
Available with built in Thermocouple
Good for processing engineering plastics( nylon66, glass polyfill)

Applications :

Extended Nozzles
Injection & Blow Moulding machine nozzles

Advantages :

Built in Thermocouple for Accurate Temperature Control at the nozzle tip
Higher operating temperature (4000Cmax)compared to conventional Mica Band Heaters (250^oC max)
Good for processing engineering plastics ( nylon66, glass polyfill)
Quick ramp up of temperature due to higher watt density
Negligible effect of material spillage
Efficient & even heat transfer due to inner Brass Collet

Dimensions :

Size	Watts	Volts
25 mm x 25 mm	250	240
25 mm x 38 mm	250	240
25 mm x 50 mm	330	240
25 mm x 75 mm	400	240
38 mm x 25 mm	250	240
38 mm x 38 mm	330	240
38 mm x 50 mm	400	240
38 mm x 75 mm	550	240
25 mm x 25 mm	250	120
38 mm x 38 mm	330	120
