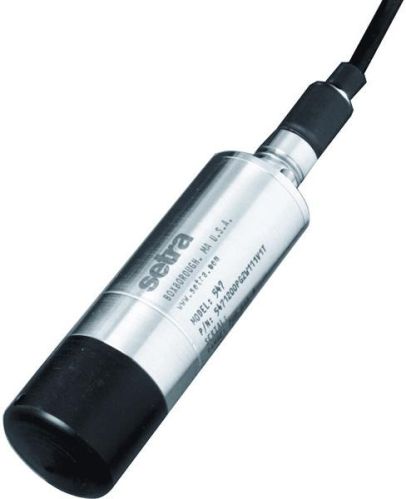

High Performance Pressure Transducers

Setra’s Model 546 and Model 547 pressure
transducers offer laboratory type
pressure measurement in a rugged
industrial housing complete with 5:1 range
turndown, ideal for high overpressure
applications, to provide full scale output from
25% to 125% of full range.
Utilizing thin film technology, Models 546 and
547 have 4 to 20 mA output, 0.1% Full Scale
accuracy, high overpressure capability, choice
of absolute, gauge, or sealed gauge pressure
measurement, and pressure ranges from
10 psi up to 10,000 psi. The compensated
temperature range is from -13°F up to +167°F.
Designed for use with corrosive media,
the Models 546 and 547 are offered with
17-4 PH stainless steel or Inconel (17-4 PH
and 15-7 Mo for ranges ≤30 psi) wetted parts
to provide years of maintenance free pressure
measurement in demanding industrial
applications. (Order Model 547 for pressure
transducer with Inconel® wetted parts.)
