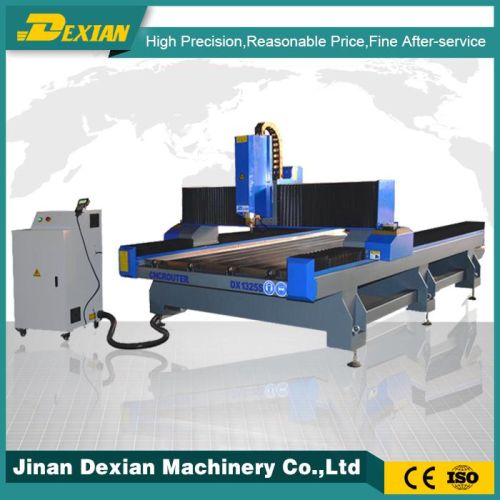

    High Performance Router CNC Stone Engraving Machine 1325 , Stone Machi

    High Performance Router CNC Stone Engraving Machine 1325 , Stone Machi

    Get Latest Price
    • Brand Namecnc
    • Country of OriginCHINA
    • Supply TypeManufacturer, Exporter
    • Preferred Buyer Location All over the world

    We are offering Condition: New CNC or Not: CNC Place of Origin: Shandong, China (Mainland) Brand Name: Dexian Model Number: DX-1325S Voltage: AC380V5060Hz,3PH (Option: 220V)) Power(W): 34.5KW Dimension(L*W*H): 1300*2500*200mm Weight: 1400KG Certification: CE, FDA, SGS Warranty: 18 months After-sales Service Provided: Engineers available to service machinery overseas Spindle Power: Italy HSD air cooling spindle Spindle Speed: 0-18000RPM Drive Motors: Stepper motor(servo) Operating System: DSPNcstudioNK105 Flash Memory: 128M(U Disk) Computer Interface: USB X,Y Resolution:
    View More Details
    Send Enquiry

    Company Information

    dexian
    location jinan
    View Number
    • calendar Member Since 9 Years
    • building Nature of Business Manufacturer

    Ask for more detail from the seller

    Contact Supplier
    Report incorrect details

    Product Details no_img_icon

    • Packaging DetailsItems Parameters Working area(mm) X 1300mm Y 2500mm Z 200mm Table Structure Table Surface 1.5 mm stainless steel T-slot table Transmission system X Gear Rack from Taiwan Y Gear Rack from Taiwan Z Ballscrew from Taiwan but with German technology Lead rail system X,Y,Z Linear round guide rail Spindle Power 3 kw Rotating Speed 0-24000 rpm Cooling Type Water-cooling Collet diameter 3.175/4/6/12.7mm About drive systems X,Y,Z stepper Servo motor and driver Panasonic/Yaskawa (optional) Dust collector system For your option Tool sensor Option Software environmant Windows 98/2000/XP Control System Ncstudio control system [DSP is optional] Compatible file formats G code ; *.u00 ; *.mmg ; *.plt . Compatible CAD/CAM Softwares Ucancam V8 / Type3 / Artcam / Working Voltage AC380V,3ph, 50Hz Precision 0.005mm Max speed 26.0m/min Max engraving speed 18.0m/min Max feeding height 200mm Work-holding devices by fixture Interface type USB Warranty guarantee One-year after-sale services
