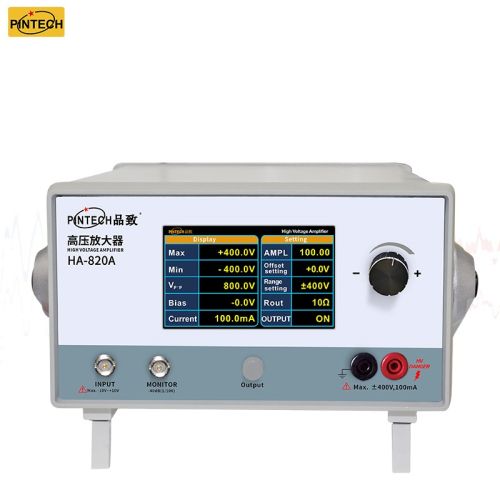

High power amplifier- HA-820A (400KHz,800V) Digital display high voltage amplifier

Listing ID #3658283

Get Latest Price

Supply Type Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

HA-820A (400KHz,800V) Digital display high voltage Digital display high voltage amplifier. AMPL times,current,voltage are diplayed on the pannel. It also add more protection design. More....

View More Details

Send Enquiry

Product Details

HA-820A (400KHz,800V) Digital display high voltage

Digital display high voltage amplifier. AMPL times,current,voltage are diplayed on the pannel. It also add more protection design. More humanize，practical.

Model	HA-820A
Output
Output DC Voltage(Max.)	400V DC
Output AC Voltage(Max.)	800Vp-p
Output DC Current(Max.)	100mA DC
Output AC Current(Max.)	200mAp-p
Output Power(Max.)	40 VA
Bandwidth	DC-400KHz(-3dB)
Slew rate(Typ.)	500V/us
Output Resistance (Protection SW OFF)	10Ω
Output Resistance (Protection SW ON)	5KΩ/40watt
Max. Loading value	4KΩ@Range±400V;2.5KΩ@Range±250V
Input (normal/Max.)	±5V(Max.±10V)
AMPLtimes	100(Max)
DC OFFSET(2 options with 2 Rout)	±250V/± 400V
Monitor(Output ratio)	100：1
Protection	1.Output used FUSE 2.Protection SW protection resistance(ON/OFF) 3.Output short circuit, overload, over current, over voltage protection 4.INPUT/OUTPUT overload protection 5.Overheating protection
Measuring display(0~1MHz)
	Range	Resolution	Accuracy
Max. voltage	±400V	0.1V	±(1%+2V)
Min. voltage	±400V	0.1V	±(1%+2V)
Peak to peak voltage	0~800.0V	0.1V	±(1%+2V)
Offset voltage	±400V	0.2V	±(1%+0.4V)
Output current	0~100.0mA	0.1mA	±1%
Setting
AMPL times	0~100.00	0.05 times	-
Output bias	±400V	0.2V	1%
