High Power Reed Switch

Littelfuse Reed Switches HA15-2 datasheet
Order Sample

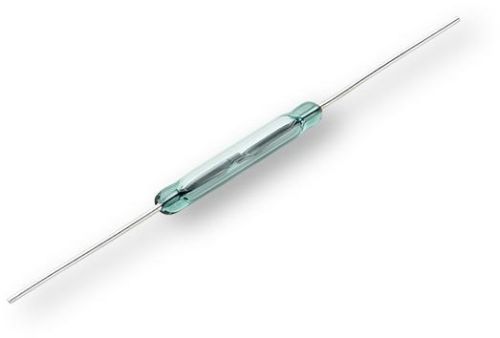

A sub-miniature, normally open switch with a 15.24mm long x 2.28mm diameter (0.600" x 0.090") glass envelope. Capable of high voltage switching of 265Vac at up to 20VA. Available sensitivity range of 17-33 AT. High insulation resistance of 1010 ohms minimum and contact resistance of less than 100 milliohms. Ideally suited for reed relays, security, metering, limit sensing, telecom and office equipment applications. Will handle light inductive loads with no suppression circuitry and is capable of switching global mains voltage.
Features:
Normally open switch capable of switching 265Vac or 0.35A at up to 20 Volt-Amperes
Minimum breakdown voltage of 400Vdc
Available sensitivity range of 17-33 AT
Benefits:
Hermetically sealed switch contacts are not affected by and have no effect on their external environment
Capable of switching global mains voltage
Zero operating power required for contact closure
Applications:
Reed relays
Security
Limit switching
Industrial safety
Telecom
Office equipment
