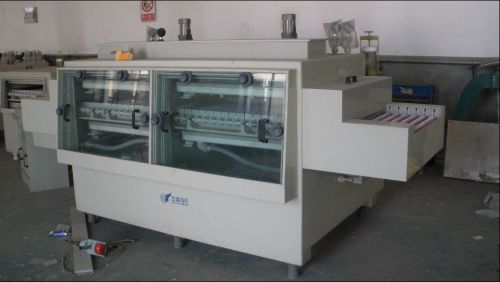

High Precise Etching Machine

High precise etching machine
Parameters:
Power 12KW/380V/50HZ
Etching area 650*Lmm
Etched type Double window and swing
Tolerance: 0.02mm
Maching thickness 0.05~2mm
Working Temperature 0~65℃
Machine Size 3500*1550*1650mm
Weight 850KG
Automatic Control System:
Speed adjust system
Pressure Ajust System
Temperature control system
Net Filter System
Features:
1.The spray structure has been improved on the basis of the common swing etching machine, the spray is more uniform and the pressure is stronger
2.It is designed for precise hollow out, cutting, and the thick plate's carving, cutting.
3.For the great scale production with high precision
4.The process thickness is more than 0.5mm
5. The machine has the advantage of automatically transmittal fast speed, and high productivity
6.Simple and convenient operation and could work persistently for a long time
7.The machine is made of PP plate, which is heat-resistant, corrosion-resistant and strain-resistant.
8.Timely service, one year warranty, life-long maintenance
9.Provide free training for customers in any places.
10.Non-standard sizes can be customized according to different business requirements
11.Environmental friendly
Applications:
It is applicable to high precision, high grade metal plate ceremony jewelry, high precision sheet metal, electronic components processing (such as the metal grid, metal grating decoder, mobile phone keypad, metal panels, metal mesh, precision filter).
