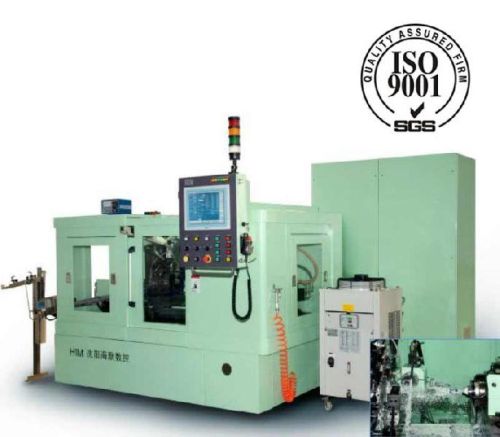

High Precision China Hermos CNC Hard Lathe

High precision China Hermos CNC hard lathe
Application field
The product is mainly applied to processing bearings, gears and auto parts, etc with hardness above HRC60.
Product performance
1.Precision work spindle and chuck ensure roundness within 0.01mm.
2.Stability of accuracy under heavy cutting can be ensured with high rigidity combined bearings in work spindle.
3.The axial table guideway are made up of hard rail and liner rail with excellent guiding accuracy and rigidity.
4.The complete solutions including machine, tool and process can be provided which can improve efficiency and extend tool life.
Items Specifications
Processing range Maximum swing diameter over saddle 250mm
Maximum cutting length 300mm
Maximum cutting diameter 320mm
Work spindle Hydraulic chuck 5"
Spindle end type and code A2-5
Spindle bearing diameter 120 mm
Spindle motor power 7kw
Maximum speed 2600 rpm
Tool Turret Turret Type 8-station hydraulic turret
Knife sizequantity 25mm×32mm8 knives
Inner diameter of knife holder 32mm
X-axis Stroke 235mm
Rapid traverse rate 18mmin
Z-axis Stroke 315mm
Rapid traverse rate 9mmin
Others Floor space (L×W×H) 2400×1800×1800mm
