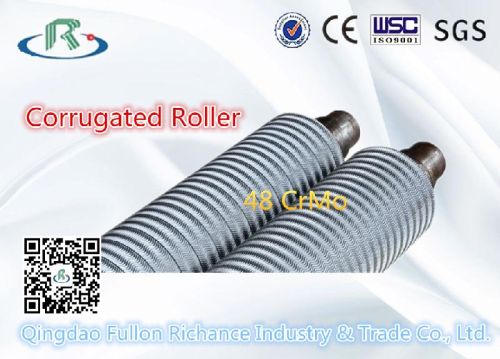

Steel High Precision Corrugated Roller, Brand Name : RichOcean

High Precision Corrugated Roller Used for Corrugated Single Facer
___________________________________________
§ About Us §
___________________________________________
1.We are the professional manufacturer of package printing machinery with more than 30 years production experience.
2.In the same industry of China, we are the first through the ISO9001 certification.
3.Our Products sell well in more than 20 provinces and cities nation-wide, also in Western Europe,South America and other countries.
__________________________________________
§ Main Configuration §
__________________________________________
1.The upper and lower corruagted roller made of 48 CrMo alloy steel.
2. With hard treatment by laser.
3.The hardness is above HRC55-60.
4.The surface is well treated by grind and plated chrome.
5.Long life for use.
6.Different type of flute according to user's request.
7.Design the flute by computer.
________________________________________________________________________
§ The Main Technical Parameters §
________________________________________________________________________
Model Shape
of orrugation Quantity
of corrugation Height
of corrugation Rate of corrugation
A UV 34±2mm 4.6~4.9mm 1.51~1.59mm
C UV 3840±2mm 3.6~3.9mm 1.44~1.51mm
BC UV 44±2mm 3.0~3.4mm 1.42~1.49mm
BC2 UV 48±2mm 2.8~3.2mm 1.40~1.45mm
B UV 50±2mm 2.6~2.9mm 1.36~1.42mm
D UV 66±2mm 1.9~2.1mm 1.40~1.41mm
DE UV 75±2mm 1.5~1.9mm 1.35~1.4mm
E UV 96±2mm 1.1~1.8mm 1.29~1.39mm
F UV 124±2mm 0.7~0.8mm 1.22~1.26mm
