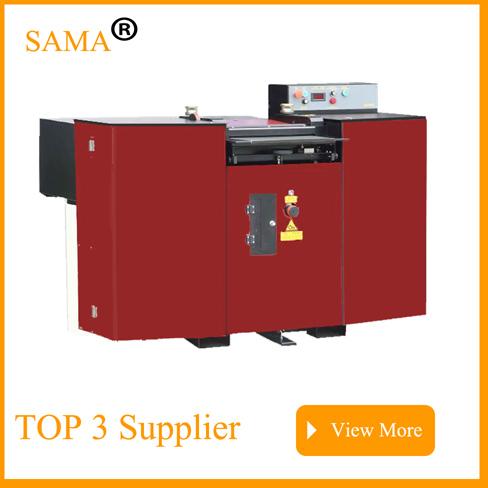

High Precision Leather Splitting Machine, Brand Name : SAMA

Product Description
It is widely used by shoe factory, undersole factory, leatherware factory, electronic factory, EVA and foam factory, etc. for cutting or laminating leather, artifical leather, PVC, PET, high fibers into the defined sizes.
Feature
1) Additional fallback function,
2) Can set feed speed freely by frequency conversion stepless speed regulation
3) Unique design in appearance, and elegance and grace in outline
4) No need to adjust the big wheel and the knife clamping device while replacing the bandknife
5) Diamond grinding wheels for grinding unit
6) Individual grinding fine control
7) Separated emery dust and scrap dust exhausters
8) 4-speed adjustment for working pressure
9) Digital thickness readout
10) Detailed user manual
11) Low noise
12) Quick replacement of feed roller or top guide bar without removing the coupling
13) Easy to remove and install all parts, and convenient for repair and maintenance
14) Life-time lubrication of mechanical parts
Technical Data
Model
S520A
Feed speed
7, 10, 14 and 18 mmin
Working width
420mm
Max. splitting thickness
8mm
Min. splitting thickness
0.5mm for top feed roll
0.1mm for top guide bar
Knife dimensions
3700*50*0.8mm
Voltage
380V
Motor power
3.5Kw
Machine dimensions(L*W*H)
1700*1080*1220mm
Package dimensions(L*W*H)
1720*1130*1370mm
Net weight
750kg
Gross weight
960 kg
Front View
Left View
Rear View
Distribution Box
Packaging & Shipping
