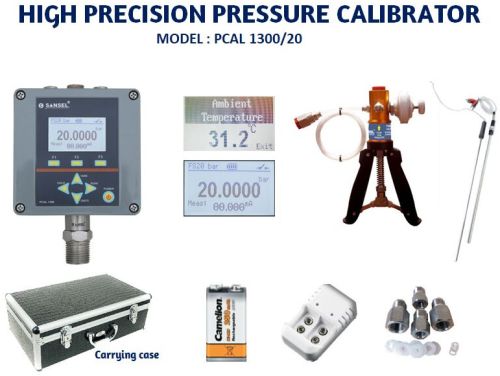

SANSEL Automatic High Precision Pressure Gauge, Color : Grey

Exact Pressure Measurement and Monitoring are Must in Applications Crucial to Operational Safety of Machinery and Industrial Installations. Regular Inspection of the Pressure gauges / sensor / transmitters / indicators Used in these Applications is Absolutely Essential for Economic and Technical - Safety Reasons and is Already Prescribed as Obligatory in Many Sectors

Description:

“SANSEL” PCAL 1300 / 20 is a Micro controller based precision pressure calibrators generates true reference pressure. Connect the gauge to be calibrated in the calibrator. Set the pressure using respective pump when stabilization.

Features:

1. High accuracy
2. 6 digit user selectable resolution
3. PT-100 temperature measurement of -200 to 800°C @ 0.001°C resolution
4. Windows base software (optional)
5. User selectable pressure units

Specifications:

• Model : Pcal 1300 / 20 bar
• Display : 128 x 64 COG Graphic LCD with White LED Back light
• Range (bar) : -1 to 20 bar
• Accuracy : ± 0.05%FS
• Resolution (bar) : 6 digit user selectable
• Instrument Port : 1/4" BSP Male x 10 mm long
• Instrument dimension : 100 x 100 x 55 (WxHxD) mm
• Instrument Weight : 400gms (Appox.)
• Stability time : 1 to 2 mins
• Pressure units* (selectable) :bar, mbar, Mpa, kpa, kg/cm2, inHg,cmHg,mmHg,mH₂o, ftH₂o,inH₂o, cmH₂o,mmH₂o
• Pressure Zero : One touch zero provided on front key
• Pressure Peak : Maximum &minimum with user reset option
• Pressure overflow : FS X 2 (Max.)
• Pressure burst : FS X3 (Max.)
• Temp.Measure : RTD-PT 100 (2,3,4, wire selectable)
• Temp. Range : -199.999 to 850.000
• Switch test : Provided
• mA Measure : 0-24 mA (scalable)
• Display scale : -99999 to 99999 counts (for mA measure input)
• Display Hold : One touch hold provided on front key
• Power Supply : 9V DC ±5% / 200mAh Rechargeable battery with battery life 4hours
• with out back light(or) 9V DC adapter /230V AC supply operated
• Pump Weight (gms)(Approx.) : 700
• Pc Interface : RS 485
• Pc Software : Windows based semi automatic calibration software (optional)
