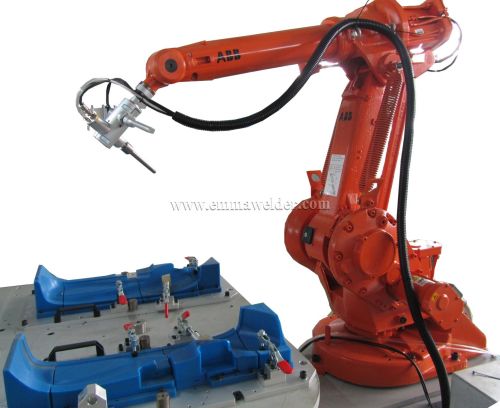

High Precision Robot Ultrasonic Welding Machine

Machine Information:
1.The machine is made up of framenet,frame, tumtable,robot,NC rotary table, cabinet, ultrasonic generator.
2.Robot can rapidly adjust distance and angle , rotary table can rapidy rotate position, turntable fix fixture, easy to remove, framenet protect workers.
3.With PLC touch panel interface, which can ensure high precision.
4.The head can be rotated 360 degrees arbitrarily and welding ranges are wider
5.It can be setup to single or synchronous welding
6.Gravity casting, CNC machining and large-sized worktable
7.Can design the machine and fixture according to Customer's requirements
8.High-efficiency welding,low breakdown
9.Lift body electrically and change moulds conveniently and efficiently
Technical parameters:
Dimension :L2450*W2915*H1930mm
Machine weight: About 1.5T
Turntable dimension:1582*1240*20mm
Safety raster height: 595mm
Insert air tube diameter: 12mm
Input power:380V 50Hz
Control equipment: man-machine
Control voltage:DC24V
Air pressure:1.5~0.7Mpa
Ultrasonic frequency:40KHz
Max power:11KW
Robot Parameter:
Weight:225KG
Repeat position precision:0.5mm
Max movement speed:2.1ms
First shaft work scope:+1-170.
