High Precision Rotary Table Bearings, Brand Name : ZYS

We are offering zys high precision yrt50 rotary table bearings for indexing tables and swivel type milling heads.
Zys precision yrt bearings consists of thrustradial housing washer, a thrustradial shaft, two axial needle roller and cage assemblies and a group of radial cylindrical roller. They can support radial loads, axial loads from both sides and tilting moments without clearance and are particularly suitable for bearings arrangements with high requirements for running accuracy. Due to the fixing holes in the bearing rings, the units are very easy to fit. The bearings are radially and axially preloaded after fitting.
bearing features:
1. high precision: precision at p4, p2.
2. high rigidity: yrt series bearings are with preload.
3. high speed: yrts series bearings can be applied in the high speed working condition.
6. Regular stock list: yrt50, yrt80-tv, yrt100, yrt120, yrt150, yrt180, yrt200, yrt260, yrt325, yrt395, yrt460, yrt580, yrt650, yrt850, yrt950, yrt1030, yrt1200

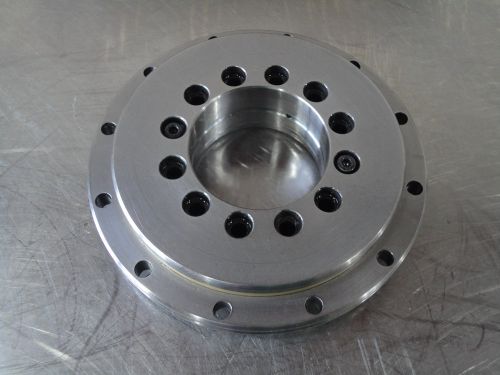

zys high precision yrt50 rotary table bearings
model number: yrt50
type: high precision rotary table bearings
brand name: zys
material:gcr15
bore size:50 mm
outside diameter: 126 mm
width: 30mm
place of origin: china
precision: p4, p2
packing details: water-proof packing, single plywood case
application: rotary tables, face plates, indexing tables, milling heads and reversible clamps, face plates, machine tools, measuring system etc.
