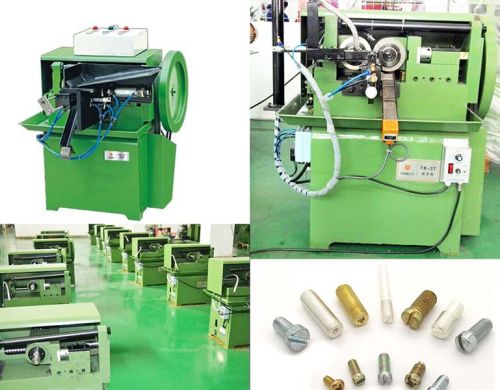

High Precision Thread Rolling Machine for bars, solid pipe, solid tube

₹ 1.58 Lakh / 1950 1950 Set

MOQ1 Set(s)
CertificationISO 9001-2008, CE
Applicationbars,solid pipe,solid tube
Total Carbohydrate12 months
Bearing brandNSK,UBC
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Shenzhen Tobest Machinery Manufacturing Co. Ltd

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 1998

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

CertificationISO 9001-2008, CE
Applicationbars,solid pipe,solid tube
Total Carbohydrate12 months
Bearing brandNSK,UBC
Weight(reference)280(KG)
Dimension(L*W*H)650*600*750 mm

We offer high precision thread rolling machine.
Diameter of workpieces φ2-φ10mm
range of pitch rolled 0.4-1.5p
length of thread rolled 28mm
spindle speed 27rpm
outside diameter of rolling die φ100mm
inside diameter of rolling die φ50.5mm
thickness of rolling die 30mm
distance between the roller shaft 90-130mm
main power motor 1hp(735w)
distance from lathe bed to rolling die 85mm
supply voltage 380v
