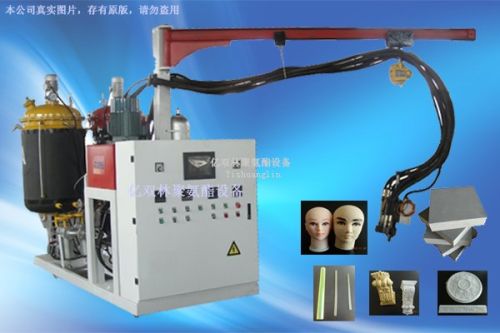

High Pressure Foam Making Machine

We are offering plc high pressure foam making machine.
details:
this series is the one specially designed according to customers’ needs, which have good utility and good economy. The users could simply select the machine type to produce different products. Additionally, its excellent performance-price ratio helps to establish high reputation in the market.
structural features:
double mixing, the vertical movement 1.5 meters, the horizontal movement 1.5 meters, 360kg tanks/only, 99 time point guards, automatic feeding system, for continuous casting tube.
structural features:
270-degree rotating hydraulic arm, can be adjusted up and down, material bin adopts carbon steel materials, which sealed up and down, with built-in closed slot can resist pressure. Self-cleaning filter, with high efficient filtering function, convenient and quick
mix head
high precision l-shaped mix head
high pressure impingement style mixing
hydraulically controlled sequential operation
metering unit
high precision axial piston pump, a2vk
variable output, robust manual adjustment via handwheel with integral precision measuring scale
magnetic coupling ensures no material leakage
digital pressure gauge for controlling pressure
components storage and temperature conditioning
pressurized and jacked tanks with visual level tube
digital pressure gauge for control and visualization of pressure with max. & min. Alarm value
electrical resistance heater and cooling water solenoid valve for temperature conditioning operation
chiller for option
electrical control system
fully controlled by plc
colorful touch screen operator panel for simple and user friendly setting of machine parameter, status showing and pouring time, etc.
alarm function with acoustic warning and text message.
