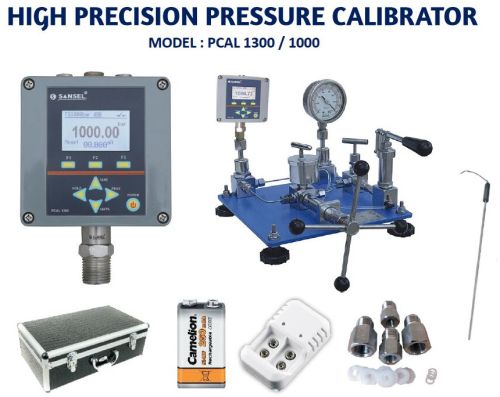

SANSEL High Pressure Gauge PCAL 1300/1000, Color : Grey

Exact Pressure Measurement and Monitoring are Must in Applications Crucial to Operational Safety of Machinery and Industrial Installations. Regular Inspection of the Pressure gauges / sensor / transmitters / indicators Used in these Applications is Absolutely Essential for Economic and Technical - Safety Reasons and is Already Prescribed as Obligatory in Many Sectors.

Description:

“SANSEL” PCAL 1300 / 1000 is a Micro controller based precision pressure calibrators generates true reference pressure. Connect the gauge to be calibrated in the calibrator. Set the pressure using respective pump when stabilization.

Applications in

Energy - Production and Energy -Distribution Sectors

Glass, Ceramic, Semi Conductor Industries

Steel Material Processing Industries

Calibrators laboratories etc,

Specifications:

• MODEL : Pcal 1300/1000 bar
• Range (bar) : 0- 1000 bar
• Pressure media : oil & Water
• Pressure pump : HP-01
• Display : 128 x 64 COG Graphic LCD with White LED Back light
• Pressure Port : 2 x 1/2" BSP Female
• Pump dimension in mm (Appox.) : 340 x240 x320(L xH xW)
• Resolution (bar) : 6 digit user selectable
• Instrument Port : 1/4 BSP Male x 10 mm long
• Instrument dimension : 100 x 100 x 55 (W x H x D) mm
• Instrument Weight : 400gms (Appox.)
• Stability time : 1 to 2 mins
• Accuracy : ±0.05%FS
• Temp. Range : -199.999 to 850.000
• Switch test : Provided
• mA Measure : 0-24 mA (scalable)
• Display scale : -99999 to 99999 counts (for mA measure input)
• Display Hold : One touch hold provided on front key
• Power Supply : 9V DC ±5% / 200mAh Rechargeable battery with battery life 4hours
• with out back light(or) 9V DC adapter /230V AC supply operated
• Pump Weight (gms)(Approx.) : 7500
• Pc Interface : RS 485
• Pc Software : Windows based semi automatic calibration software (optional)
