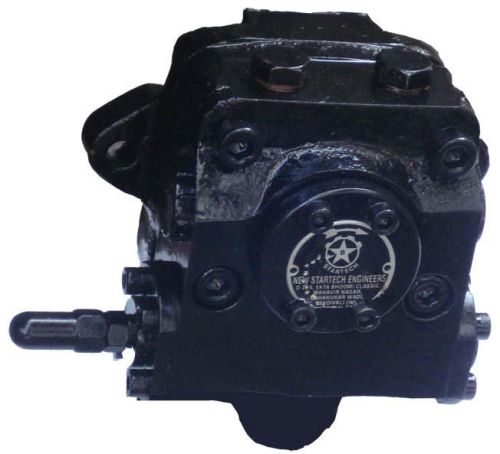

High Pressure Gear Pump

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Our High Pressure Gear Pumps are NSTA series pumps, which are acknowledged for their flawless functionality. We are counted amongst the well-known Manufacturers, Exporters and Suppliers of High Pressure Gear Pump. For the fabrication of our pumps, we make use of only excellent quality raw materials. Buyers can contact us for placing bulk as well as urgent orders for High Pressure Gear Pump. Technical Data : Mounting - Flange Mounting

View More Details

Send Enquiry

Product Details

Specifications

Digit	Pump Model	Output IN LPH At 2880 RPM	Discharge Pressure
1 TO 5	NSTA -2	500	UPTO 40 Kg/ Cm2
	NSTA-3	750	-
	NSTA – 4	1000	-
6	C : CLOCKWISE	A : ANTICLOCKWISE	-

Note : Output capacity is calculated with oil of 32 cSt viscosity at 37.5 ^oC and at 2880 rpm and 10 Kgf/Cm^{2 .}

Connection Details

Description	NSTA series pumps
Inlet & Outlet	½” BSP (F)
Bypass (Return)	½” BSP (F)
Pressure Gauge Port	¼ “ BSP (F)
Vacuum Gauge Port	¼” BSP (F)
FLANGE HUB DIAMETER	Ø 60 mm
Shaft diameter	Ø 12 mm
