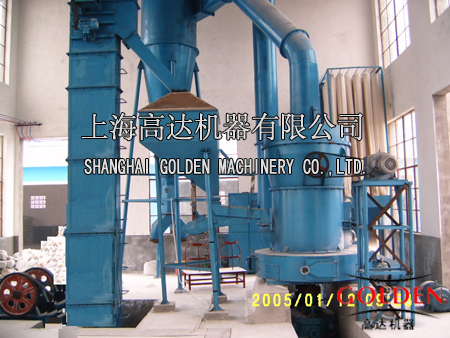

High Pressure Grinding Mill

We offer High pressure grinding mill.
Structure
High pressure grinding mill consists of main frame,duct fan,analyzer,cyclone power collection device,bag duct collector and pipe connection.we will provide the elevator,bunker,electrical cabinet,feeder,crusherand so on. To meet clients’requirements.
Features and benefites
In the micro-power grinding room,the rollers hanged on the roller lifting frame,which is fixed with the main sheft and the scraper knife.the pressure spring press on the outer of the cantilever by tension rod,with the corss arm sheft as the supporting point.let roller tightly press on the inner surface of the ring.when the motor moved with equipment,the scraper knife on the scraper frame moved with the roller at the same time.as the roller moved on the inner sphere surface and moved itself.analyzer let the analyzer runner rotated by motor equipments,and the power fineness depend on the speed adjustment of the analyzer.
Applicability
High pressure grinding mill is suitable in grinding bartle,limestone,ceromic,coking coaland so on.it is mainly applied to the power processing of mineral products in the industries of mining,metallurgy,constrution materials and chemicl materials.ect.more than 280 kinds of high finesse power grinded,and the final product size can be adjusted as requied in the rang of 80-425meshes(even til 1000meshes).
Technical parameters
GDM-260 3 Ø260x150 Ø780x150 15 0.613-0.033 2.2-3.0 1.5-2.2 1.0-1.4 18.5 4300X3500X5100
GDM-280 3 Ø270x140 Ø830x140 20 0.613-0.033 3.4-4.6 2.2-2.8 1.2-2.0 22 5300X4100X5200
GDM-310 4 Ø310x170 Ø950x170 25 0.613-0.033 4.3-5.6 3.0-3.8 2.1-3.5 30-37 7100X5900X7900
GDM-320 4 Ø320x160 Ø970x160 25 0.613-0.033 4.5-6.0 3.1-4.0 2.0-3.6 37 9900X5800X7500
GDM-410 5 Ø410x210 Ø1280x210 30 0.613-0.033 5.0-10.5 4.0-6.6 2.8-5.4 75 9200X7300X9700
