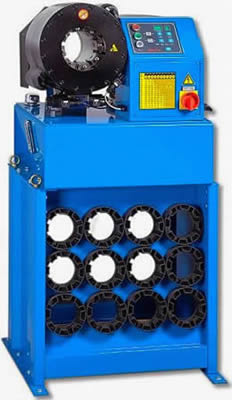

High Pressure Hose Crimping Machine

We are offering high pressure hose crimping machine. The high pressure hose crimping machines have many different types and styles. In the hydraulic hose crimper page we already introduce one type and we’ll offer the details in this page to give you more specific information. High pressure hose crimping machine is a kind of large-scale hose crimping machine that the inner diameter of hose can up to 150mm. Our high pressure hose crimping machines are classified by the crimping range.
high pressure hose crimping machine used for 14 inch to 6 inch hoses
the hose crimping machine is designed to cater to the large-diameter high pressure hoses and fittings of industrial fields, agricultural fields and oil transferring tubes in mechanical engineering. The max i.d. Of crimping hose is up to 6 inch.
technical parameters
crimping range 14 inch to 6 inch
max. Crimping force 1130t11300kn
opening ±40mm
rated pressure 16mpa
motor powervoltage 380v7.5kw
crimping period 20s
die sets 10sets
weight 1500kg
dimension 1800×900×1500mm
high pressure hose crimping machine front appearance high pressure hose crimping machine the back and profile appearance
high pressure hose crimping machine used for 14 inch to 2 inch 4sp hoses
light weight high pressure hose crimping machine on the ground
this type hose crimping machine is suitable for crimping high pressure hoses of 14 inch to 2 inch. It is small appearance and convenient to carry with big force, low noise and easy operation. The crimping amount can be adjusted by the dies and it’s precise.
characteristics:
more convenient and humanized to operators because of the low height and gravity design
high efficiency due to the advanced hydraulic design and valve
can be used for crimping kinds of unusual elbows and flanges
technical specifications:
crimping range 14 inch to 2 inch
max crimping force 2500kn
opening ±30mm
full crimping cycle 20s
electrical requirement 380v50hz3ph or 220v50hz1ph
