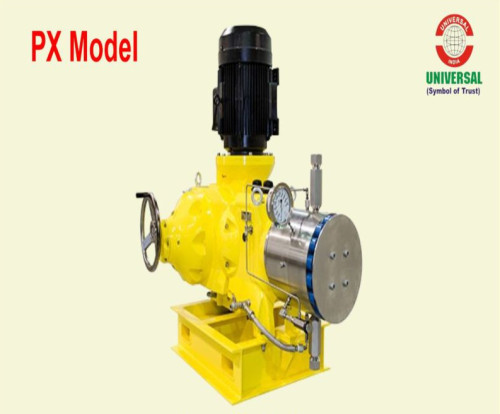

High Pressure Metering Pump Primeroyal X (PX) Series

PRIMEROYAL metering pumps are versatile, reliable pumps that consistently and accurately inject chemicals. The pumps’ field proven design enables precise control of the pump delivery rate with a +/-1% steady state accuracy, over a range to 10 to 100% of the nominal flow rate, and repeatability. They feature a compact, variable eccentric drive that changes the stroke length by changing the position of the center of the shaft in the centric this API675-compliant pump has been designed to deliver maximum performance within a minimized footprint.

Model X provides accurate dosing of a broad spectrum of fluids at pressures up to 1,029 bar (14,924 psi) and a maximum flow rate of up to 16,490 l/h (4,198 GPH) per dosing head. Available in vertical or horizontal motor configurations and with ability to accommodate three types of liquid ends, PRIMEROYAL X can meet the specific performance requirements of numerous industrial applications.
