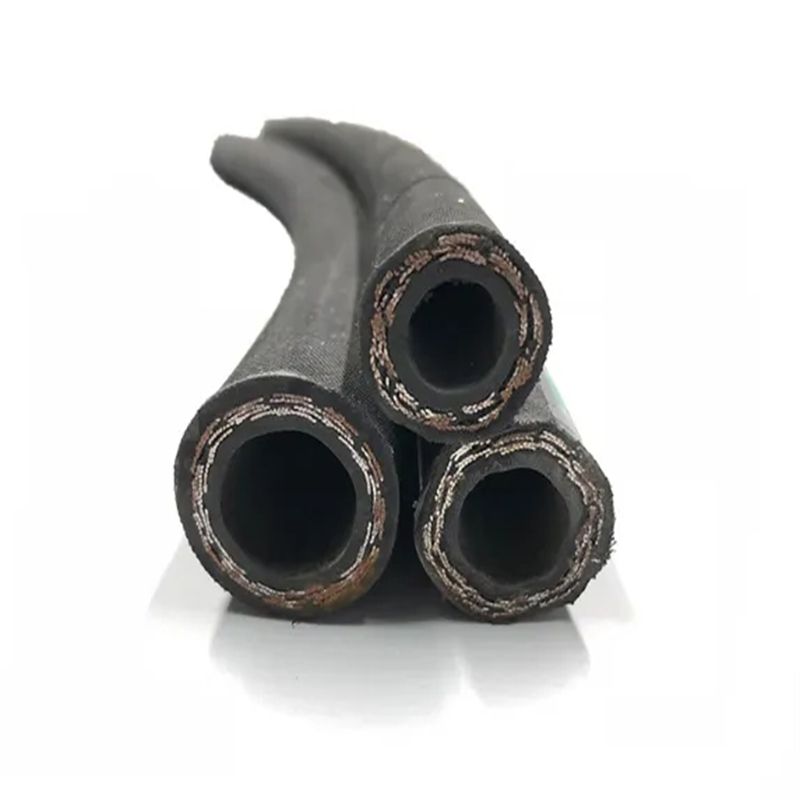

construction:
inner tube:oil resistant synthetic nitrile rubber
reinforcement:two layers of high strength fiber braided
cover:oil and weather resistant synthetic rubber
application:petroleum base and water base hydraulic fluids
surface:wrapped surface,smooth surface
temperature range:-40ºc (-104 ºf ) to +100ºc(+212 ºf)
Â
| item code | metric size | inch size | sae dash size | i.d | o.d | max w.p | min b.p | min b.r | w.t | |||
| standard(mm) | standard(mm) | |||||||||||
| mm | inches | dash | min | max | min | max | mpa | psi | mpa | mm | kg/m | |
| r3-05 | 5 | 3/16 | 03 | 4.5 | 5.4 | 11.9 | 13.5 | 10.5 | 1520 | 42 | 75 | 0.16 |
| r3-06 | 6.3 | 1/4 | 04 | 6.1 | 7 | 13.5 | 15.1 | 8.7 | 1260 | 34.8 | 75 | 0.19 |
| r3-08 | 8 | 5/16 | 05 | 7.6 | 8.5 | 16.7 | 18.3 | 8.4 | 1220 | 33.6 | 100 | 0.25 |
| r3-10 | 10 | 3/8 | 06 | 9.2 | 10.1 | 18.3 | 19.8 | 7.8 | 1130 | 31.2 | 100 | 0.29 |
| r3-12 | 12.5 | 1/2 | 08 | 12.4 | 13.5 | 23 | 24.6 | 7 | 1020 | 28 | 125 | 0.41 |
| r3-16 | 16 | 5/8 | 10 | 15.6 | 16.7 | 26.2 | 27.8 | 6.1 | 880 | 24.4 | 140 | 0.49 |
| r3-19 | 19 | 3/4 | 12 | 18.7 | 19.8 | 31 | 32.5 | 5.2 | 750 | 20.8 | 150 | 0.66 |
| r3-25 | 25 | 1 | 16 | 25.1 | 26.2 | 36.9 | 39.3 | 3.9 | 570 | 15.6 | 205 | 0.81 |
| r3-32 | 31.8 | 1-1/4 | 20 | 31.4 | 32.9 | 42.9 | 46 | 2.6 | 380 | 10.4 | 250 | 0.97 |
