Face Materials:      Carbon / Silicon Carbide / Tungsten Carbide
Metal Parts:            SS 316, SS 304, Hastelloy-C,Titanium, Alloy-20, Monel
Secondary Seal:      Elastomers

Oil Pipeline Pumps
Boiler Feed Water Pumps

Single acting
Balanced
Inside Mounted
Independent of direction of rotation
Multiple springs design
Sturdy drive mechanism

Shaft diameter d1 : 25.....115 mm
Pressure p : 25....150 bar
Temperature t : _ 40.....1800 C
Velocity v : 20 m/sec

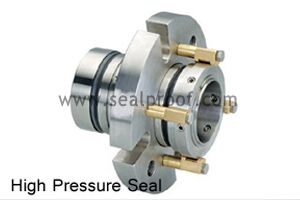

Specially designed cartridge seal for pumps handling oil, water and other fluids which are being pumped at very high pressure. These seals are widely used on pipe and Boiler feed water pumps. Very sturdy design and drive arrangement makes the seal suitable for very high pressure. This being multiple spring seal, it provides uniform face loading

Face Materials:      Carbon / Silicon Carbide / Tungsten Carbide
Metal Parts:            SS 316, SS 304, Hastelloy-C,Titanium, Alloy-20, Monel
Secondary Seal:      Elastomers

Oil Pipeline Pumps
Boiler Feed Water Pumps

Single acting
Balanced
Inside Mounted
Independent of direction of rotation
Multiple springs design
Sturdy drive mechanism

Shaft diameter d1 : 25.....115 mm
Pressure p : 25....150 bar
Temperature t : _ 40.....1800 C
Velocity v : 20 m/sec
Specially designed cartridge seal for pumps handling oil, water and other fluids which are being pumped at very high pressure. These seals are widely used on pipe and Boiler feed water pumps. Very sturdy design and drive arrangement makes the seal suitable for very high pressure. This being multiple spring seal, it provides uniform face loading
