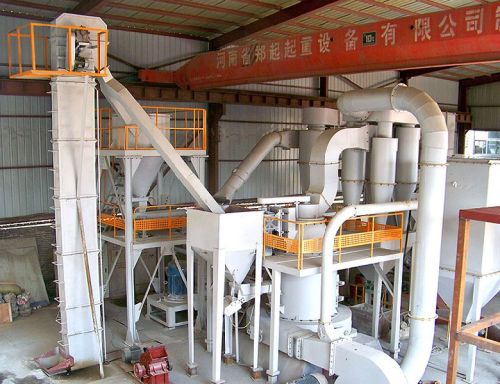

High Pressure Ultrafine Grinder

YGMX series high pressure ultrafine grinder could process barite, limestone, ceramic, slag and other non flammable material whose Moh’s hardness is less than 9.3, moisture is less than 6%, it is applied in mining, metallurgy, chemical engineering and construction material industry fine powder process.

Speed of main shaft has been increased positive pressure of grinding is improved grinding area is increased because roller’s diameter is increased and efficiency of grinding is improved.

Impeller blade is increased thickness of blade is decreased centrifugal force is increased resistance of powder and air is decreased; rational design of shell of classifier; rational design of air seal coarse particles are kept away from inside impeller final product quality is improved.

High wind pressure and small flow air blower gas collection tank steel plate thickness is increased rigidity is increased.

Key parts of main machine are strengthened shock absorption device and air bellow are improved and covering cylinder possesses ground connection vibration damping and anti-crack performance.

• Production capacity : 0.4-18T/H Notice: Mean value the specific production capacity is subject to clients’ actual equipment configuration., 0.4-18T/H Notice: Mean value the specific production capacity is subject to clients’ actual equipment configuration.
• Processable Material : Power process for limestone calcite fly ash calcium carbide kaolin calcium carbonate coal gangue gypsum slag ore slag coal dust bentonite barite marble talc refractory material.
• Range of Application : Mining metallurgy chemical engineering and construction material industry fine powder process.

YGMX series high pressure ultra-fine powder grinder is the most advanced grinding mill designed by our techniques developing department, it’s widely applied in nonmetal mining industry, it possesses many advantages, such as stable working performance, wide range of application, simple structure, easy operation, high capacity, energy conservation and environment protection, and it’s high technology grinding mill. YGMX series high pressure ultrafine grinder could process barite, limestone, ceramic, slag and other non flammable material whose Moh’s hardness is less than 9.3, moisture is less than 6%, it is applied in mining, metallurgy, chemical engineering and construction material industry fine powder process. In product development and technological innovation field, EMCC not only values the improvement of function, but also pursues efficiency, reliability, stability and persistence. We focus on helping clients to achieve long term and stable benefit.

When main motor power decelerated by gear reducer center shaft and star rack will be forced to rotate roller will rotate around the center shaft under the force of centrifugal at the same time it parallel swings around arm shaft roller will be forced to press on grinding ring to make sure the perfect surface contact between roller and grinding ring. Roller revolves on its axis around roller material will be grinded and crushed grinded powder will be taken to classifier by air blower’s air flow to be classified standard powder will be taken to cyclone collector by air flow then discharged by powder tube coarse powder will fall in the main machine chamber to be reground.
