High Pressurised Adiabatic Humidifier

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Triplex high pressure heavy-duty crankshaft pump 3 ceramic plungers, brass head Bride with flexible coupling Working pressure: 70 bar Pressure regulating valve, built-in....

View More Details

Send Enquiry

Company Information

Kahan Controls

Kandivali, Mumbai, Maharashtra

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details


	Triplex high pressure heavy-duty crankshaft pump 3 ceramic plungers, brass head
	Bride with flexible coupling
	Working pressure: 70 bar
	Pressure regulating valve, built-in bypass with solenoid valve (BPS)
	Safety valve
	Glycerin filled pressure gauge
	Heavy duty ventilated motor 3-phase 4.0-5.5 HP 500-1450 RPM
	ON-OFF switch with thermal overload
	3/4" M BSP inlet - 3/8" M BSP outlet
	Cyclic digital timer


	Weatherproof s.steel skid cover on antivibration rubber feet Equipped with three-ph inverter with soft start
	only one variable pressurised pumping system can be used for multiple rooms with each room solenoid valve / humidistat arrangement for low initial investment & energy saving by VAR pump.
	Low noise
	Automatic variable flow rate-
	Can operate several nozzle lines
	Automatic switch-off if all line are closed
	Automatic switch-off if water supply is missing
	Automatic switch-off if no pressure (leakage) is detected
	Automatic switch-on if at least one line is opened
	Automatic switch-off if motor overheats
	Energy saving (absorbed power is proportional to water flow)
	Longer pump life (lower RPM)
	Automatic filling of pipelines (timer OFF until lines are refilled)
	Manufactured in compliance with CE regulations

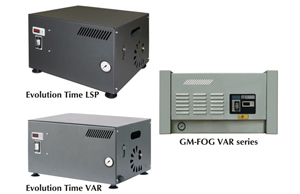

EVOLUTION TIME ‘‘LSP’’ series for systems from 5 up to 30 fogging nozzles These series of professional high pressure pumps are the suitable solution with high quality and safety standard for all requirements to build professional misting systems with flow rates up to 2.5 l./min. with singlephase power supply.
Our built-in digital cyclic timer (”Time” versions only) offers the full efficiency control of the fogging system by direct adjustment of the frequency of mist spray increasing the advantages on water and energy consumption with savings up to70%if compared to standard systems. LSP system with 700 RPMS motor allows very low noise AND longer pumplifetime.
