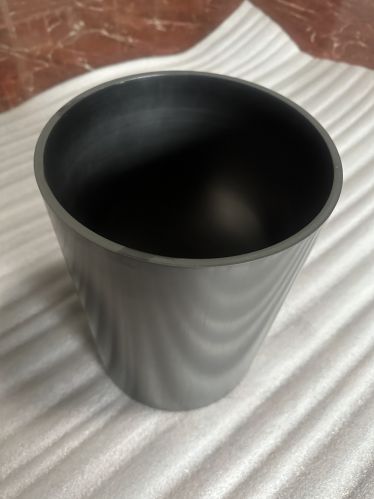

High Purity Graphite Tubes, Brand Name : Yiguan

₹ 1.36 Lakh / 3000 Feet

MOQ1 Feet
Brand NameYiguan
Lengthcustomized size
ConditionNew
Applicationfor industry
Supply TypeManufacturer
Preferred Buyer Location Malaysia only

Product Details

Brand NameYiguan
ConditionNew
Applicationfor industry
Lengthcustomized size
FeatureGood Quality
Flexural strength38Mpa
compressive strength65Mpa
Shore Hardness42HSD

Accept customize any size of graphite ring sleeve, ODM OEM is available !

Graphite Tube Advantages
High strength
Graphite tubes are stronger than many metallic materials, which gives them better durability under high loads and extreme environments.
Lightweight
Graphite tube's lightweight properties make it an ideal material for applications such as aerospace and automotive, allowing for improved performance and reduced energy consumption.
Good Electrical and Thermal Conductivity
Graphite tubes have electrical and thermal conductivity superior to many other materials, making them useful for a wide range of applications in electronic devices and energy.
Corrosion resistance
Graphite tube has good corrosion resistance, making it widely used in the chemical industry and marine environment.
Ease of processing
Graphite tubes can be easily processed by cutting, drilling, and bending, which makes them more flexible and customizable in a variety of applications.
Graphite Tube Applications
Electronic devices
Graphite tubes are widely used in electronic devices due to their excellent electrical and thermal conductivity. In batteries and supercapacitors, the electrical conductivity of graphite tubes can improve their energy density and charge/discharge efficiency. In addition, the thermal conductivity of graphite tubes can help electronic devices dissipate heat better, thus improving their stability and life.
Chemical industry
Graphite tubes have a wide range of applications in the chemical industry, especially in high-temperature and highly corrosive environments. Due to its stability and corrosion resistance, graphite tube is used to manufacture chemical reactors and piping, as well as in catalyst carriers and microporous filter membranes.
Aerospace
The lightweight and high-strength properties of graphite tubes make them an ideal material for aerospace applications. For example, graphite tubes can be used to make components for airplanes and rockets, as well as structural materials for satellites and space probes.
Automotive industry
Graphite tubes also have a wide range of applications in the automotive industry, such as manufacturing automotive components and batteries. Due to their thermal conductivity, graphite tubes can also be used in radiators and other thermal management components for automobile engines.

We have various models for you to choose:

Technical Parameters	YG-4	YG-5	YG-6	YG-7	YG-8
Density (g/cm³)	1.8	1.85	1.9	1.82	1.9
Electrical Resistivity (μΩ.m)	8~11	8~10	8~9	11~13	11~13
Thermal conductivity 100℃ (W/m.k)	121.1	139.2	140	85~110	85~110
Coefficient of Thermal Expansion (indoor temperature-600℃) 10-6℃	5.46	4.8	4.5	5.7	5.85
Shore hardness (HSD)	42	48	53	65	70
Flexural Strength (Mpa)	38	48	55	51	60
COMPRESSION STRENGTH (Mpa)	65	85	95	115	135
Elasticity modulus (Gpa)	9	11.8	12	11	12
Porosity %	17	13	11	12	11
Ash Content (PPM)	500	500	500	500	500
Granularity (μm)	13~15	13~15	8~10	8~10	8~10
Usage	common use	common use	Continuous casting, Sintering, High temperature metallurgy	EDM, Photovoltaic	EDM, Photovoltaic, Glass
