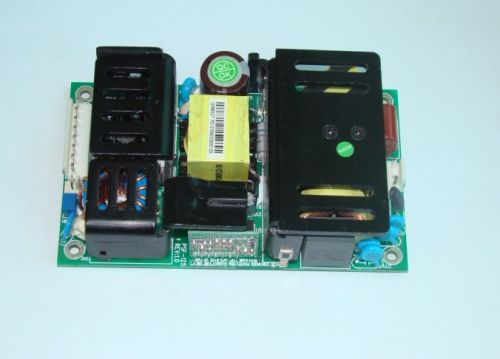

High Quality 150w Single Output Switching Power Supply

input voltage (v): 90vac～264vac
input current (a): 2a max
efficiency: 85％typ（230vac full load）
output voltage（v): +24vdc
output current（a): 6.3a
rated power（w）: 151.2w
ripple/noise（mvp-p）:240mvp-p
working temperature (℃): -20℃ - +60℃（refer derating curve）
withstand voltage（vac）:i/p-o/p:3kvac,i/p-fg:1.5kvac,op-fg:0.5kvac 1min
safety standard: en/ul60950-1,gb4943
emc standard: en55022 class b,en61000-4-2,3,4,5,6,8,11 gb17626.5 level3
over voltage protection: >115%-135% rated output voltage
over current protection: n/a
over load protection: >105%-150% hiccup mode,auto recovery
short circuit protection: latched
over temperature protection: auto reboot
mtbf:≥120k hrs 25℃
dimension—l*w*h(mm): 160*98*38mm
