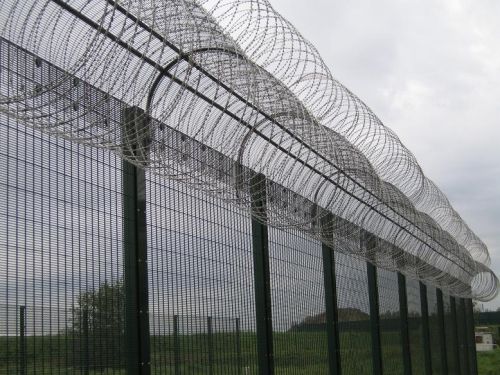

High Quality 358 Security Fence, Brand Name : 003

We are offering high quality 358 security fence.
Panel:
using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating; it can resist the corrosive and
ultraviolet radiation very strongly. The thickness of powder coating is 100-120 microns usually.
The choose wire diameters are 6mm*2+5mm*1.8mm*2+6mm*1. It obtains high strong powers to resist the construction.
Fence size: 200 mm x 50 mm x 2.5 meters x from 630mm - 2630mm or available on request.
Post:
this system usually choose square post (50*50mm, 60*60mm), rectangular post (80*60*2.5mm, 120*60*3mm) with the high strength and so on. With plastic caps or
roofing rainhat.the finished surface usually is galvanized and powder coating, or alternatively.
Fastenings:
the panels and posts are jointed together with bolts or rivets, using the steel flat bar, or special steel clamps, all nuts are self-locking.this also can be
designed as the special clients requests.
Application:
boundary and anti intruder
stand and finish:
galvanized polyester coated green
other standard colors available on request
358 security fence
height
x width panel
mm
mesh size
mm.
Wire diameter
post of height
mm
wire dia
mm
wire dia
mm
wire dia
mm
630*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
1100
830*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
1300
1030*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
1500
1230*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
1700
1430*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
1900
1630*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
2100
1830*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
2400
2030*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
2600
2230*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
2800
2430*2500
50*200
8x2 + 6
6x2 + 5
6x2 + 4
3000
different specifications are available according to customers' special inquiry or detailed drawings
main markets: australia, canada, america, european countries, and asia countries.
