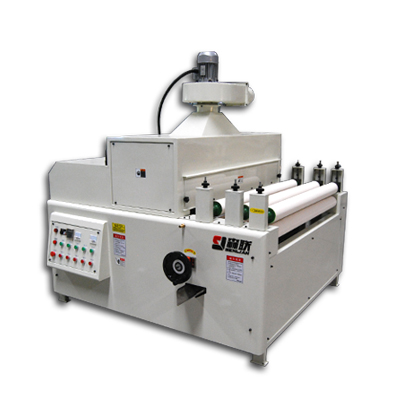

Contact SupplierBottom roller coating machine
function: it has three parts to coat film on the back of board, first part is to press and convey the board with five rubber rollers in up and down structure. In view of simple film requirement, the second and third parts behind combine single roller coating with double lamps uv curing structure for a thin film once.
•application filed:
floor, sauna board, special building materials, etc.
•application board:
solid, ply, mdf, etc.
•application paint:
uv.
Technical parameters
optional working width 600mm800mm1300mm
max working thickness 100mm
min working length 300mm
working speed 0-25mmin
paint pump 0.6mpa, 10l,
stainless steel roller φ200mm
rubber roller epdm, φ205mm, h45 degrees
full power 17.5kw17.5kw25.5kw 380v
estimated weight 900kg1050kg1200kg
overall dimensions 1880*1300*1560mm 1880*1500*1560mm 1880*2000*1560mm
main parts
electric motor unis
frequency converter shihlin
main bearing nsk from japan
conveyor ammerraal from holland
paint pump vacuum diaphragm pump
electrical appliance chint
optional rollers for different process epdm roller, polyurethane rubber roller
