Contact SupplierCapacity:0.8-260th
fineness: 30-400 mesh
capacity:20-200 th
raw material: calcite, chalk, limestone, and talc etc, totally more than 100 kinds of materials.

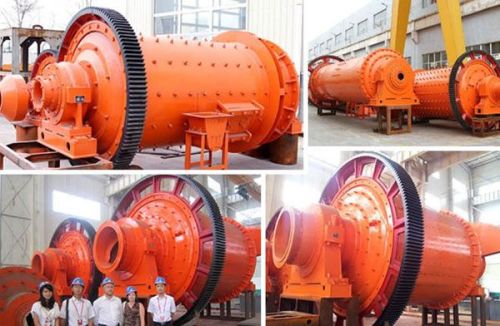

Introduction of calcium carbonate ball mill
the calcium carbonate ball mill machine changes the intrinsic grinding mill structure. Its body and ground plank are an integral whole. So when fixing, it can be lowered on a plane surface once only. Use double tiered roller axletree with centripetal spherical surface as the support of the host axletree can reduce energy cost by 30%. The intrinsic grille pattern forcing evacuation is instead by over fall pattern controlling one. This can improve the milling of the granule and the quantity dealt with is reduced by 15-20%.
Features of shanghai clirik machinery co.’s calcium carbonate ball mill
1. High production capacity and crushing ratio;
2. Low power consumption, uniform particle size;
3. Simple structure, easy to operate;
4. Low investment cost, big profit;
5. Perfect services, both before-sales servies and after-sales services.
Technical data of calcium carbonate ball mill
model rotary speed(rmin) weight(t) input size(mm) discharge size(mm) capacity(th) motor power (kw) weight (t)
900×3000 39 2.7 20 0.075-0.89 1-4 22 5.6
1200×4500 32 5 25 0.074-0.4 1.6-5.8 55 13.8
1500×5700 28 12 25 0.074-0.4 3.5-6 130 24.7
1830×7000 24 23 25 0.074-0.4 8-18 245 36
2100×3600 23 19 25 0.074-0.4 10-36 210 46
2200×7500 21 35 25 0.074-0.4 15-30 380 56
2400×4500 21 30 25 0.074-0.4 18-45 320 65
2700×4500 20 48 25 0.074-0.4 22-85 430 89
3200×4500 18 65 25 0.074-0.4 29-140 800 137
3600×8500 17 144 25 0.074-0.4 45-260 1800 260
