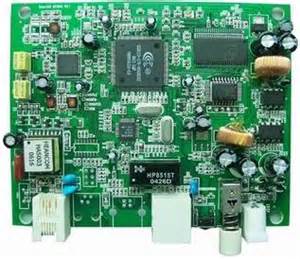

High Quality Customized Fr4 PCB Assembly

Offers high quality customized fr4 pcb assembly.
Smt, pth, mixed technology
smt: 2,000,000 solder joints per day
dip: 300,000 joints per day
ultra fine pitch, qfp, bga, î¼bga, cbga
advanced smt assembly
automated insertion of pth (axial, radial, dip)
cleanable, aqueous and lead-free processing
rf manufacturing expertise
peripheral process capabilities
pressfit back planes & mid planes
device programming
automated conformal coating
our production capability for pcb
number of layer 1 - 20 layer
maximum processing area 680, 1000mm
min board thickness 2 layer - 0.3mm ( 12 mil )
4 layer - 0.4mm ( 16 mil )
6 layer - 0.8mm ( 32 mil )
8 layer - 1.0mm ( 40 mil)
10 layer - 1.1mm ( 44 mil )
12 layer - 1.3mm ( 52 mil )
14 layer - 1.5mm ( 59 mil )
16 layer - 1.6mm ( 63 mil )
18 layer - 1.8mm ( 71 mil )
finished board thickness tolerance, thickness ¤ 1.0mm, tolerance: â± 0.1mm
1.0mm � thickness � 6.5mm, tolerance Ⱡ10%
twisting and bending � 0.75%, min: 0.5%
range of tg 130 - 215 �
impedance tolerance â± 10%, min: â± 5%
hi-pot test max: 4000v10ma60s
surface treatment hasl, with lead, hasl free lead
flash gold, immersion gold
immersion silver, immersion tin
gold finger, osp
we provide oem services to all sorts of printed circuit board assembly as well as electronic encased products.
