High Quality Electrical Crepe Paper Tube Paper

FOB Price:     US $ 1.5 - 3 / Kilogram | Get Latest Price
Min.Order Quantity:     1000 Piece/Pieces
Supply Ability:     100,000,000 Piece/Pieces per Month
Port:     Ningbo and shanghai
Payment Terms:     L/C,D/A,D/P,T/T
Quick Details
    Place of Origin: Zhejiang, China (Mainland)
    Brand Name: Conductor MART
    Model Number: Crepe tube
    Type: Insulation Paper
    Material: Composite Polymer
    Application: High Voltage
    Rated Voltage: 5000V
    Tensile Strength: GOOD
    Tolerances: I.D. +0.5mm. O.D. +1.0m
    Standard base paper thickness: 0.05mm, 0.08mm & 0.13mm
    Standard reel width: 625,mm & 870mm
    Mini order: 1000 pcs
    Delivery time: 10-25days
Packaging & Delivery
Packaging Details:     1.carton
2.plstic strip
3.film
Delivery Detail:     10-35days
Specifications
crepe paper
1. High purity
2. High oil-absorption
3. Good electric dielectric strength
High quality electrical crepe paper tube paper
is one of the most important solid insulation materials used in transformers. Its quality directly influences the life span of the transformer. The BDV is enhanced by up to 80% as compared to base kraft paper. To ensure of best quality of Crepe paper, the base kraft paper is manufactured using longer fibers of pure wood pulp.
Standard base paper thickness: 0.05mm 0.08mm & 0.13mm • Standard reel width: 625,mm & 870mm
Reels can also be supplied in slitted form as per desired width of the customer

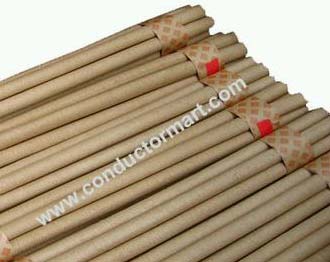

Crepe Paper Tubing
Made of Electrical Grade Insulation Crepe Kraft Paper. Direction of creping is transverse. Only the edge of outer layer is glued. These tubes have extremely good compatibility with liquid di-electrics. Class “A” insulation (105oC). The Tube retains maximum oil due to use of Crepe Paper. These tubes can bend under extreme conditions without collapsing.
I.D. starting from 3 mm. O.D. Wall Thickness as per specification. Standard length is 1000mm. • Tolerances: I.D. +0.5mm. O.D. +1.0m
