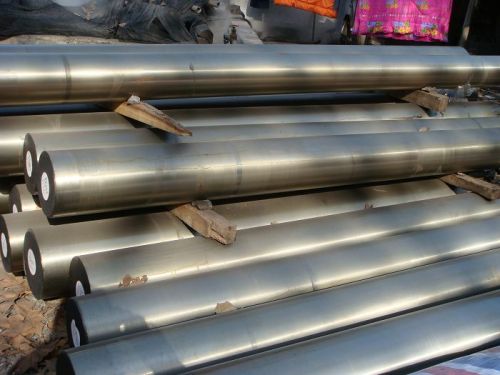

High Quality Hot Work Tool Steel

We offer high quality hot work tool steel h11 1.2343 skd6. Feature
competitive price
immediate delivery
premium quality
reliable service
packing details in seaworthy packing, as your requirement.
Delivery details within 30-50 days
> tool steel h11 is characterized by a controlled chromium content along with other alloying elements.
> tool steel h11 with excellent toughness
> tool steel h11 with high hardenability
common specifications:
round dia 50-420 mm
square dia 50-420 mm
flat thickness 20-50 mm width 80-600 mm
chemical composition(%):
c 0.33-0.43
mn 0.20-0.60
p 0.030 max
s 0.030 max
si 0.80-1.25
cr 4.75-5.5
v 0.30-0.60
mo 1.1-1.6
heat treatment
hardness :annealed(+a) max: 235 bhn
tool steel h11 when heat-treatment the preheat temperature need reach 788°c, and the temperature may be ± 14 °c .
Tool steel h11 when austenitizing ,should keep 5-15 minutes long. If is the salt bath ,temperature should keep in the 996 °c,and shall be ± 5.6 °c. Or is the controlled atmosphere furnaces,temperature should keep in the 1010 °c,and shall be ± 5.6 °c.
quenching: tool steel h11 hardening quenching using air cooling, and it’s hardness min is 53 rc.
tempering: tool steel h11 general tempering temperature is 552°c. Double tempering of double tempering of tool steel h11 is recommended.
Smelting & shaping: ef, efeaf+lf+vd, efeaf+esr,
ultrasonic test:material will be ultrasonically tested at appropriate stages of the manufacture to ensure the quality, as agreed between seller and purchaser.
application:
tool steel h11 are frequently used in cold work applications requiring toughness at relatively high hardness
surface state:
black, grinded, peeled, polished
delivery condition:
annealed , quenched + tempered
