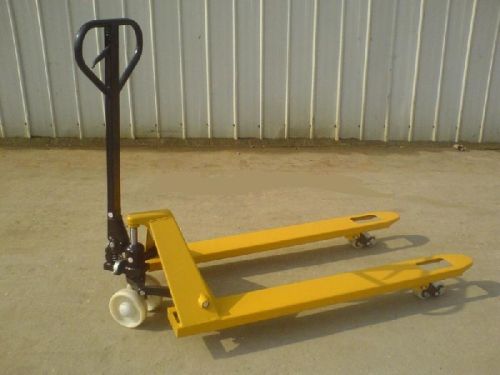

High Quality Hydraulic Hand Pallet Jack 2500KG Capacity

Main features 1) double lifting speed when loads under 600kg, which turns back to regular speed when above it. 2) impact free lifting ensure safety of cargo loading. 3) the lifting system is equipped with overloading protection valve to ensure the safe operation. 4) the utilized structural design guarantees the convenience of assembling and disassembling. 5) light-weight fork frame, made from high rigidity steel plate. 6) compact appearance, innovative separated rock arm, ensure the whole truck evenly pressed, 7) there is a finger hole in the connection of handle and pump, easy to assemble. Capacity                 q kg 2000 2500 3000 mini fork height    h mm 85 75 85 75 85 75 max fork height   h1 mm 200 190 200 190 200 190 steering wheel mm φ200x50 φ180x50 φ200x50 φ180x50 φ200x50 φ180x50 load bearing wheel  (single wheel) mm φ82x93 φ74x93 φ82x93 φ74x93 φ82x93 φ74x93 load bearing wheel (double wheel) mm φ82x70 φ74x70 φ82x70 φ74x70 φ82x70 φ74x70 fork size             mm 160x50 160x60 fork width           b mm 450/520/540/685 frok length         mm 1150/1220.
