High Quality IBR Sheets Roll Forming Machine

₹ 21.60 Lakh / Set

MOQ1 Set(s)
Brand NameBelieve Industry
Production Capacity60 sets per quarter
Total Carbohydrate2 years for all the parts of the machine
After-Sales Service ProvidedCommission and Installation: Free
Supply TypeManufacturer, Exporter
Preferred Buyer Location All over the world

Company Information

Member Since 9 Years
Nature of Business Manufacturer
Year of Establishment 2001

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameBelieve Industry
Production Capacity60 sets per quarter
Total Carbohydrate2 years for all the parts of the machine
After-Sales Service ProvidedCommission and Installation: Free
Country of OriginJIANG SU
Model NumberC 100-350

Description:

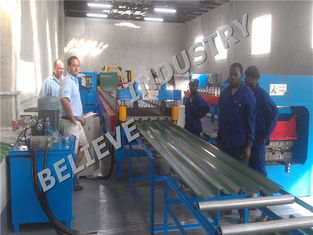

this roof panel forming machine is suitable for manufacturing colored steel roofing panel. The machine includes decoiler, roll former, cutter, hydraulic pump station, product table, and cabinet, etc.
technical parameters - yx40-250-1000
raw material carbon steel, galvanized steel, q235
material thickness 0.3-0.8mm
material width depend on specific profile
diameter of shaft 76mm
material of shaft 45# steel
material of rolls
45# steel chromed with thickness 0.05mm
main power 3-7.5kw
forming speed 15-20mmin
forming station 12-24 stations
cutting type hydraulic cutting
cutting blade
cr12 mov
