High Quality Insulation Crepe Paper

FOB Price:     US $ 1.5 - 3 / Piece | Get Latest Price
Min.Order Quantity:     1000 Piece/Pieces
Supply Ability:     100,000 Piece/Pieces per Day
Port:     Ningbo and shanghai
Payment Terms:     L/C,D/A,D/P,T/T
Quick Details
    Place of Origin: Zhejiang, China (Mainland)
    Brand Name: Conductor MART
    Model Number: Crepe paper
    Type: Insulation Paper
    Material: Composite Polymer
    Application: High Voltage
    Rated Voltage: 5000V
    Tensile Strength: GOOD
    Tolerances: I.D. +0.5mm. O.D. +1.0m
    Standard base paper thickness: 0.05mm, 0.08mm & 0.13mm
    Standard reel width: 625,mm & 870mm
    lenght: According to our custormers' requirements to cut
    size: OEM
    Mini order: 1000 pcs
    Delivery time: 10-25days
Packaging & Delivery
Packaging Details:     1.carton
2.plstic strip
3.film
4.wooden pallet
5.sometimes according to our custormer's requirements
Delivery Detail:     10-25days
Specifications
Crepe paper
Standard base paper thickness: 0.05mm, 0.08mm & 0.13mm
Standard reel width: 625mm & 870mm
High quality Insulation Crepe Paper
is one of the most important solid insulation materials used in transformers. Its quality directly influences the life span of the transformer. The BDV is enhanced by up to 80% as compared to base kraft paper. To ensure of best quality of Crepe paper, the base kraft paper is manufactured using longer fibers of pure wood pulp.
Standard base paper thickness: 0.05mm 0.08mm & 0.13mm • Standard reel width: 625,mm & 870mm
Reels can also be supplied in slitted form as per desired width of the customer

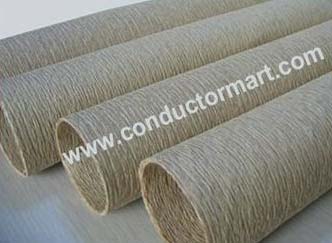

Crepe Paper Tubing
Made of Electrical Grade Insulation Crepe Kraft Paper. Direction of creping is transverse. Only the edge of outer layer is glued. These tubes have extremely good compatibility with liquid di-electrics. Class “A” insulation (105oC). The Tube retains maximum oil due to use of Crepe Paper. These tubes can bend under extreme conditions without collapsing.
I.D. starting from 3 mm. O.D. Wall Thickness as per specification. Standard length is 1000mm. • Tolerances: I.D. +0.5mm. O.D. +1.0m
