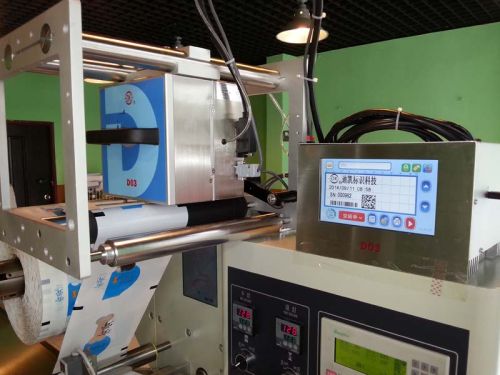

Contact SupplierWe are offering high quality thermal transfer overprint machine.
Type: coding machine condition: new automatic grade: automatic application: package machine, labeling machine, etc., horizontalvertical package machine, labeling machine, etc. Place of origin: china (mainland) brand name: dk model number: d03 packaging material: paper packaging type: cartons driven type: electric voltage: ac 110-220v power: 150w weight: 8kg certification: ce sgs surface speed: 40meters per minute print speed: continuous: max. 40 metersminute; intermittent: 450ppm print contents: bar code, qr code, image, variable information, etc. Print area: continuous: 32*100mm; intermittent: 32*60mm print head: 32mm width, 300 dpi (12 dotsmm) printer size: 188*190*180mm control box size: 210*180*155mm
print head 32mm, 300dpi
print area intermittent-32mm*60mm
continuous-32mm*100mm
ribbon size w-33mm, l-600(max.)
print frequency intermittent:up to 450ppm
continuous:up to 200ppm
power ac110~220v, 5060hz, 150w
environmental operating temperature 0~40°c
relative humidity 10%~95% ( no condensing)
air supply 6bar90psi(max) dry uncontaminated
weight intermittent-print head:8.5kg, control box:2.0kg
dimension print head 188mm*190mm*180mm(l*w*h)
control box 175mm*210mm*110mm(l*w*h)
