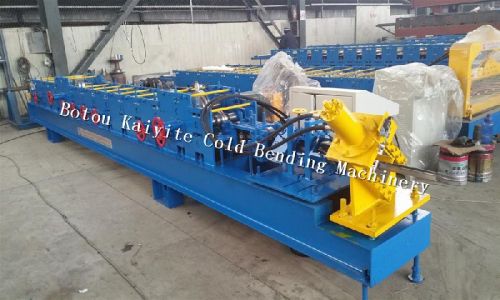

High Quality U Channel Roll Forming Machine

High Quality U Channel Roll Forming Machine                                                  Within the steel and metal working industry, High Quality U Channel Roll Forming Machine becomed more and more important. Nowadays U purlin is widely used in steel structral frame, it is more strong than wooden purlin but cheaper and more easy install than concrete purlin. Our High Quality U Channel Roll Forming Machine can produce many different type of U purlin, it has two modes, one is manual, the other one is automatic, by this way, it can help you to operate it more convenient. 1. U purlin Producting Process Flow Decoiler- Feeding and Leveling device- Main Roll Forming System- PLC Control System- Hydraulic Punching and Cutting device- Discharge table. 2. Machine Parameter 2.1 Raw Material A. Suitable Material: Colored Steel Plate, Galvanized Board, Aluminum Plate; B. Width of the raw material: 175-465mm; C. Thickness: 0.6mm - 3mm; 2.2 Main Body A. Roller station: 11 Stations; B. Diameter of shaft: ￠70mm, 45# steel; C. Roller material: 45# steel; D. Frame: 350 H steel; E. Operate: Manual and Automatic; F. Working speed: 8 - 10 mmin; G. Size (L*W*H): about 5800*1250*1510 mm; 2.3 Power A. Motor power: 5.5 Kw,  Hydraulic power: 3 Kw; B. Voltage: 380V 50Hz 3Phases or Customization; C. Driving way: By Chain 3. Components of machine
