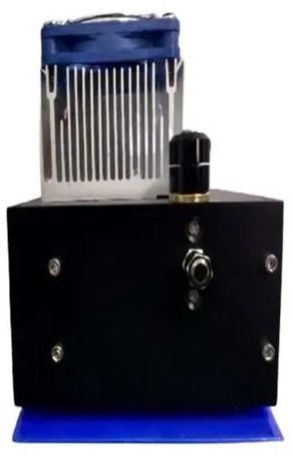

High Resolution Spectrometer, Power Source : Electric

₹ 25 Lakh / Piece

Display TypeDigital
ConditionNew
Power SourceElectric
Country of OriginIndia
Supply TypeSupplier, Distributor, Trader
Preferred Buyer Location All over the world

Company Information

5.0/5

Member Since 8 Years
Nature of Business Manufacturer
GST No. 07AAHFI6568G1Z2

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

ConditionNew
Power SourceElectric
Display TypeDigital
Country of OriginIndia
Repeatability+/- 0.075 nm
Stray Light1 x 10-5
Spectral Dispersion1.34 nm/mm
Grating Size76 mm x 76 mm
Flat Field Size30 mm x 12 mm
Magnification1.1
Wavelength Accuracy+/-0.20 nm

Product Details :
The Fibre Coupled Raman Spectrometer is optimized for maximum light throughput and high speed spectrum acquisition. Connected to an AFM or a scanning stage, high speed Raman imaging is possible due to an integration time down to 10 ms per spectrum. The spectrometer can be operated with a separate software as stand-alone device or synchronized via the Anfatec AFM software.
Features:

Rotating motorized (single) grating
Operation in the wavelength range from 400 nm to 1100 nm (with appropriate gratings)
Resolution of 5 cm^-1 with a spectral window of 2100 cm^-1 at 532 nm
High-speed imaging with an acquisition time down to 10 ms per spectrum
Calibration lamp for spectrometer calibration or high precision measurements (see Software / Accessories)
Software package for acquisition and data analysis of single spectra or Raman mappings (see Software / Accessories)
Synchronization to Anfatec AFM software and Molecular Vista VistaScan (see VistaScope)
