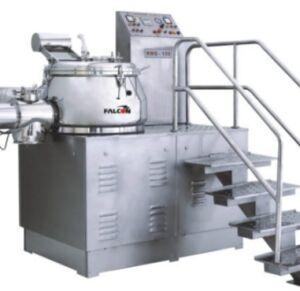

Contact SupplierHigh Shear Mixer Granulator has been developed for mixing of ingredients used for wet granulation process. Multi blade impeller and chopper design is for better floating and tumbling of material for dry & wet mixing; it forms a uniform wet granules. The equipment will be design for suitable of Vacuum Transfer System for material loading.
Â
Salient Features:- High Shear Mixer Granulator
Model | 25 | 50 | 100 | 150 | 250 | 400 |
Gross Volume (Lim) | 25 | 50 | 100 | 150 | 250 | 400 |
Working Volume (Les) | 20.0 | 40 | 80 | 120 | 200 | 320 |
Impeller Motor kW/HP | 2.013.0 | 5.0/7.5 | 5/7.5 | 10/15 | 20/30 | 30/40 |
Impeller Blade RPM | 75/150 | 75/150 | 75/150 | 75/150 | 75/150 | 75/150 |
Chopper Motor kW/HP | 0.75/1.0 | 1.0/2.0 | 3.0/3.0 | 3.0/3.0 | 5.0/5.0 | 5.0/7.5 |
Chopper Motor RPM | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
