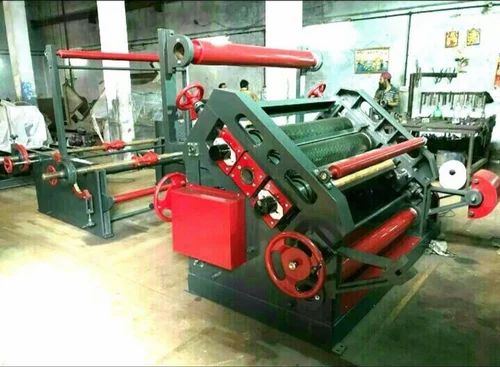

High Speed 2 Ply Combination Paper Corrugation Machine With Hydraulic Reel Stand

backed by a team of adroit professionals, we are manufacturing and supplying an extensive array of corrugated box making machine.
in two diffeeent modes
* vertical
* oblique
* double  profile paper corrugation machine
with  hydraulic reel stand,  and auto  sheeter

the high speed  single  facer  offers  a  high  rate  of  production and  enhanced efficiency,  the rolls  are  mounted on bearing for  smooth  running,  and  longer  life,  the  rollers are  made  from specially en19 forgot  material  the  rolls  , the  rolls  dia  approximately 233 mm  , minutely,  finished  , flute  rolls  result,  in  perfect  formation of  flutes  , the  machine is  equipped with  hydraulic system,  to  adjust  the  pressure and  gum  , rollers,  which is  operated from  separate remote panal
the  machine is  provided with  gum  tray. Movement device   when  gum  unit  is  disengaged  , from  rollers  , the  machine is recommended  to  be  used  on  steam  , or  thermic  fluid  heaters
approximately out put  of  machine is  110 rtf/min
the  heaters  are provided for  the  appropriate conversation of  paper to  2 ply. , after  pasting  you  can  make  3ply,  5ply, 7, ply. , 9ply  any  typed  boxes

with  corrugation machine
pasting machine , rotary machine, slotter machine , stitching machine and reel to sheet cutting machine require
if you want to print
then flexo or offset printing machines be used . With die punching machine paper cutting machine,and paper lamination machine  also be used
features:

sizes.     heating load.    output/mtr/min.

42"           27kw.                  25.
45"           28kw.                  25.
52"           30kw.                  25.
62"           33kw.                  25.
72"           38kw.                  25.
