High Speed Aluminum

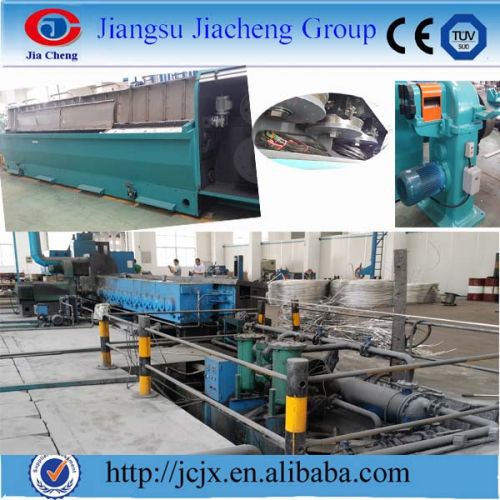

High speed aluminum and al-alloy rod breakdown machine with dual bobbin take up
main feature
1.lroned cast.
2.horizontal structure, dual driving motors, owning rapid die change system.
3.high precision gear transmission, high efficiency, low noise.
4.fully immersed way to lubricate and cool, which can guarantee the quality of drawing wire.
high speed series
jcjx-lht450 al or al-alloy rod breakdown machine
machine type
lhd45013
lhd45011
lhd4509
inlet dia. (mm)
9.5
outlet dia. (mm)
al
1.7~4.8
2.2~4.8
2.8~4.8
al-alloy
2.3~4.5
2.8~4.5
3.2~4.5
drawing drum dia. (mm)
450
450
450
fix speed capstan dia. (mm)
450
450
450
max. Die no.
13
11
9
drawing speed (max) (ms)
25
22
20
main motor (kw)
al
250 (dc)
220 (dc)
220 (dc)
al-alloy
315 (dc)
280 (dc)
280 (dc)
fix speed capstan motor
75 (dc)
drum arrangement
horizontal type
drawing drum
coated by tungsten
drum lubrication type
immersed type
take-up bobbin
pnd 630 pnd 560 pnd 500
take-up motor (kw)
22×2
take-up bobbin loading type
pneumatic type
