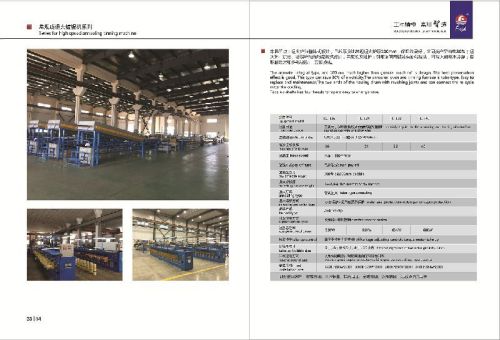

High Speed Annealing Tinning Machines, Brand Name : FUCHUAN

Get Latest Price

MOQ1 Set(s)
Brand NameFUCHUAN
Country of OriginChina
Inlet Diameter0.08MM-0.64MM
ApplicationIt is applied to the annealling and tinning of ultra fine round copper wire and alloy wire
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Company Information

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2001

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Brand NameFUCHUAN
Country of OriginChina
ApplicationIt is applied to the annealling and tinning of ultra fine round copper wire and alloy wire
After-Sales Service ProvidedYES
Inlet Diameter0.08MM-0.64MM
NameHigh speed Annealing Tinning machine
Model NumberFC-T16/24/32/40
Warranty1 year

Series for Normal Wire High speed Annealing Tin machine
Merits:Easy to operate,good annealing heat preservation,save
electricity,achieve industry-leading level
Twisting Usage It is applied to the annealling and tinning of ultra fine round copper wire and alloy wire
Inlet Dia（mm） φ0.08～φ0.25mm;φ0.15～φ0.64mm
Max numbers of inlet wire 24 32 40
Linear Speed max:300mmin
Pay off Method Brush pay off
Pay off bobbin Model φ300bobbins
Annealling Furnace Length 3.5m～6m
Annealling Method Tube Annealling
Annealling Protection Method Water seal protection
Tinned Method (Hot dip)
Capstan Control Method Inverter+Motor Control or Adopt Stepless Speed Regulation Motor(Selected by Customer)
Main Power 61KW 63KW 68KW
Take up Control Take up is voltage regulator control the moment motor
Take up Bobbin Size 5inch，8inch or 5inch,8inch,10inch Bobbins
Traverse Control Method Stepless Speed Regulation Motor+Turbine Gear Box Control Toothrow Traverse
Installation Size(mm) 18000*1500*2100 20000*1500*2100 24000*2200*2100
