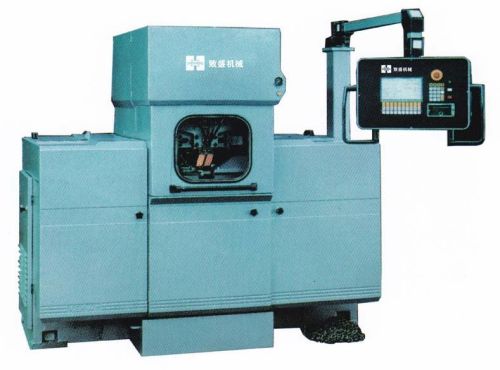

High Speed Automatic Chain Welding Machine

This welding machines are following the most advanced germany technology and our independent research development,which is the high efficient full automatic chain welding machine,use for the alloy steel wire chain welding production.the machine includes the chain transmission unit;rotating mechanism unit;preheating unit;welding unit;forging mechanism unit;deburring mechanism unit;resistance welding micro computer control system;plc control system.the construction of this machine is very compact,with more safety and reliable working,high speed welding in full automatic,is the best choice for 100 grade chain welding production.
technical data：
technical data
model lun125-x
suitable wire diameter 5-10mm
chain pitch 2.7-5.0 times of wire diameter
productivity 50-70ringsmin
welding transformer power 125kva, 50hz
motor power 3kw
cooling water consumption 18lmin, 15 centigrade
machine dimension 4000 x 2800 x 2300mm
machine net weight 3.8t
other welding wire dimater: 2-6mm,6-11mm, 11-13mm, 13-18mm,18-22mm,22-26mm.
