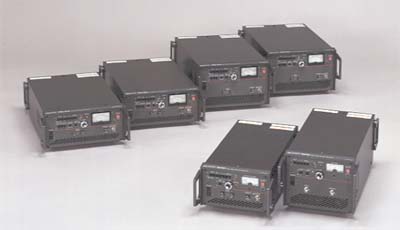

High Speed Bipolar Amplifier

HSA series is a power amplifier which has high speed, broad band (DC to max. 10 MHz) , and the capability of supplying high voltage and high power. DC+ DC- signal is variable continuously with wide output range of maximum 300Vp-p without switching. Furthermore, as Four-quadrant output is possible, source mode(providing a power to load from a power amplifier in coincidence of voltage polarity and current polarity as normal amplifier) and sink mode (Sinking a power from load to power amplifier in reverse current) operation are available. Therefore, It is possible to drive smoothly a capacitive load and an inductive load like a piezo electric component, a solenoid and others.
