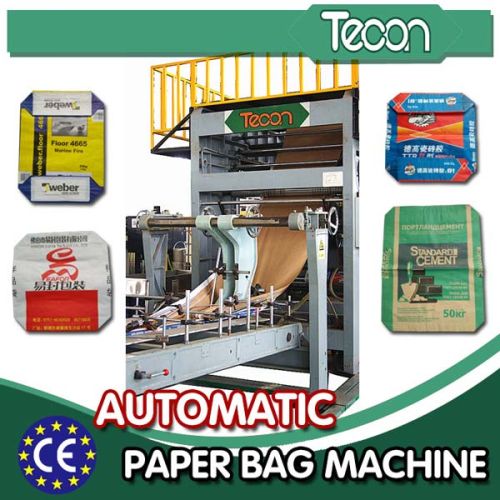

High Speed Bottom Pasted Valve Paper Bag Production Line

We offer high speed bottom pasted valve paper bag production line.
Foshan tecon package machinery co.,ltd is a high-tech equipment manufacturer. We designed first production line for paper bag 20 years ago, that is about 1996, and now we are listed in the world top three in this industry and the only one in china able to disign & manufacture the whole production line of bottom sealed paper bag.
The leading product of our company is the "high-speed automatic bottom-pasted bag making machine". It is composed of a tuber machine and a bottomer machine.
features of our full-automatic paper bag production line:
1.flat & glued bottom with filling valve;
2.different types for cement, chemicals, foods, tea, etc.
3.2-color automatic printing
4.2~4 paper layers, with one extra pepp film available
5.35~50 million bagsyear
6.servo system control or plc control available, integrated with photoelectric & pneumatic control system, siemens electrical system
7.full technical service for installation, training and maintenance
8.full solution for factory construction and materials purchase.
technical parameters of our production line:
zt9802 bottomer machine
1.length of bag tube: cutoff length + 40 mm
2.cutoff length:700 -1050(±4)29 grades,each grade 12.5 mm
3.width of bag tube: 400- 600(no grade) adjustment
4.printing length:600-950mm
5.printing width:1100mm
6.color category: two-color overprint,four-color overprint
7.formed thickness: 6mm
8.production efficiency: 100-150 bagmin
9.name of glue:metamorphic starch, methyl or cmc
10.width of scroll :1220mm
11.scroll diameter:1220mm
12.diameter of scroll core:75-80mm
13.main motor:y180l- 4 type, 22kw 1 unit
14.main motor, delta belt:c-type, length: 2500mm quantity: 6
15.total power: 30.9kw
16.weight: 34t
17.outline dimensions(length*width *height): 34*2.4*2.7 m
if you are interested in our products, please do not hesitate to contact us.
