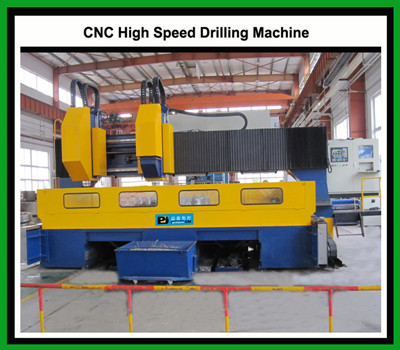

High Speed CNC Drilling Machine, Certification : ISO9001

₹ 1.36 Cr - ₹ 2.26 Cr / Set

MOQ1 Set(s)
Brand NamePERFECT
CertificationISO9001
Model NumberPD
Conditionnew
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2002

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NamePERFECT
CertificationISO9001
Conditionnew
After-Sales Service ProvidedYES
Drilling Speed3000
Model NumberPD
Place of OriginChina
drilling machineCNC Drilling Machine
tube sheet drillingheat exchanger

We offer high speed cnc tube sheet drilling machine.
applicable industry:
used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.
technical data, please check the following form:
name of parameter item value
max. Distance between hole centers length width 50005000mm
max. Thickness of workpiece 250mm
worktable width of t-slot 28mm
vertical ram type drilling head quantity 2
morse taper bt50
max .drilling diameter. (normal carbon steel) 40mm(carbide drill head)
50mm(high-speed steel twist drilling head
drill depthdrill diameter 5(carbide drill head)
rotation speed of spindle(stepless frequency conversion) 30_3000rmin.
We warmly welcome customers to visit our factory at any time. No wait, please order now!
