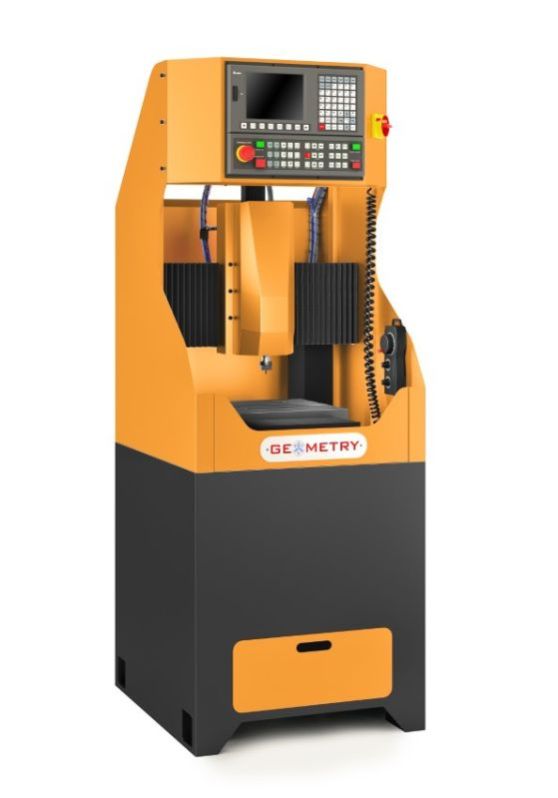

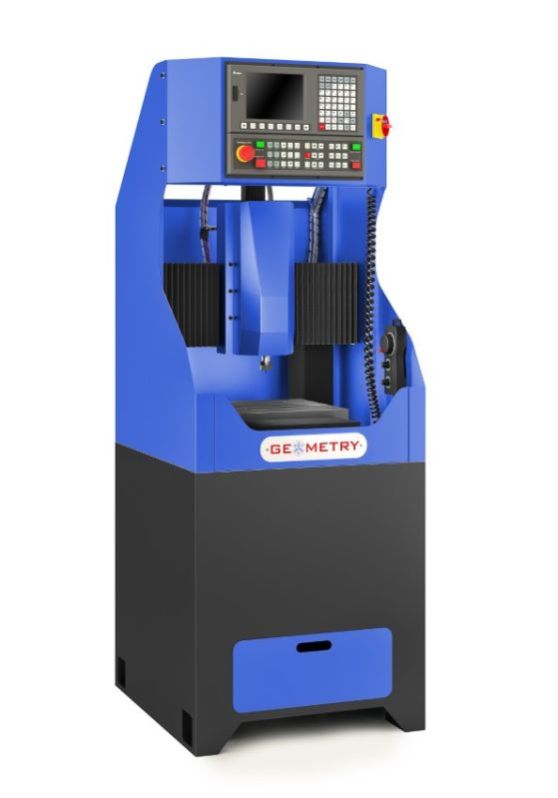

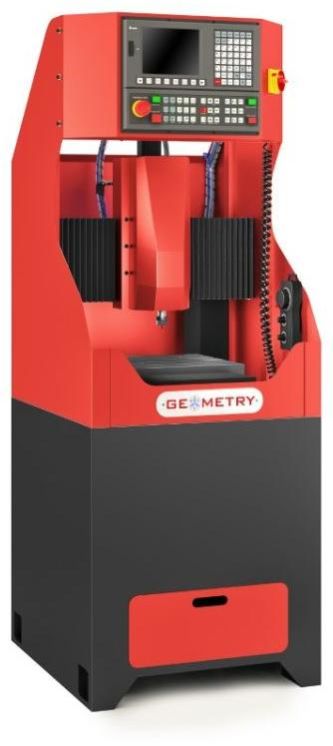

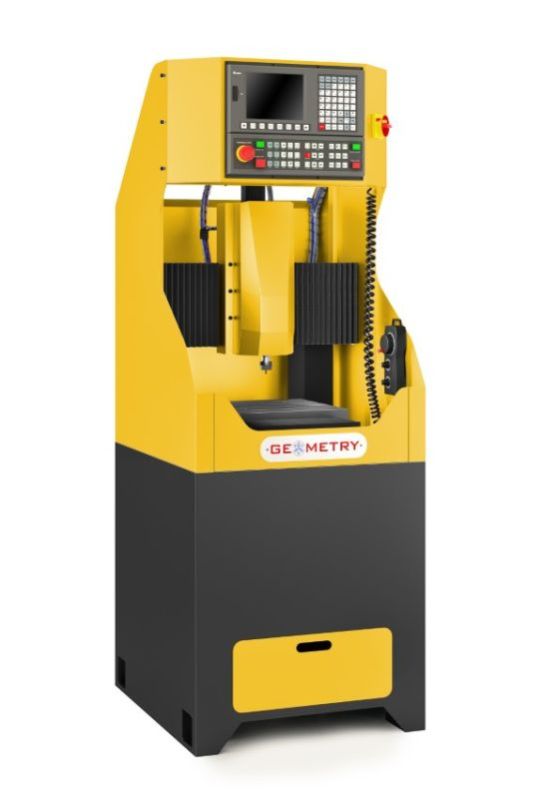

| SPECIFICATIONS | GDE HP 300L | GDE HP 400L |
|---|---|---|
| Table Size - Clamping Area | 350 x 350 | 500 x 400 |
| Working Area X - Y - Z | 500 x 300 x 150 | 400 x 400 x 150 |
| T Slot Size | 14 MM | 14 MM |
| T Slot Centre Distance | 75mm | 80 mm |
| Rapid Feed | 15000 mm/min | 15000 mm/min |
| Cutting Feed | 10000 mm/min | 10000 mm/min |
| Spindle Power | 2.2 Kw | 2.2 Kw |
| Spindle RPM | 24000 | 24000 |
| Spindle Type | Water Cooled | Water Cooled |
| Tool Clamping System | ER - 20 | ER - 20 |
| Max Tool Diameter | 12 | 12 |
| Positioning Accuracy | 8 Micron | 8 Micron |
| Position Repeatability | 5 Micron | 5 Micron |
| Axis Guide System | 20 MM Precision LM Guideways | 20 MM Precision LM Guideways |
| Axis Drive System | 25 mm Ground Ballscrew | 25 mm Ground Ballscrew |
| Axis Motors | Absolute Servo Motor | Absolute Servo Motor |
| CNC System | Delta / LNC CNC Controller | Delta CNC Controller |
| Spindle Drive | Sensorless Vector Control | Sensorless Vector Control |
| USB Connection | Yes | Yes |
| LAN Connection | Yes | Yes |
| Job Size Measurement | Yes | Yes |
| Break Point Restart | Yes | Yes |
| Power Cut Restart | Yes | Yes |
| Feed Override | Yes | Yes |
| Synchronous Interpolation | Yes | Yes |
| Full Closed Loop System | Yes | Yes |
| MPG Handwheel | Yes | Yes |
| Work Co-Ordinate | G54 to G59 | G54 to G59 |
| Square Zero Offset | Yes | Yes |
| Round Zero Offset | Yes | Yes |
| Maximum Job Weight | 150 Kg | 150 Kg |
| Machine Weight | 850 Kg | 950 Kg |
| Machine Dimensions | 650 x 800 x 1850 | 770 x 920 x 1850 |
| Operating Temperature | 20 - 35 Degree Celsius | 20 - 35 Degree Celsius |
