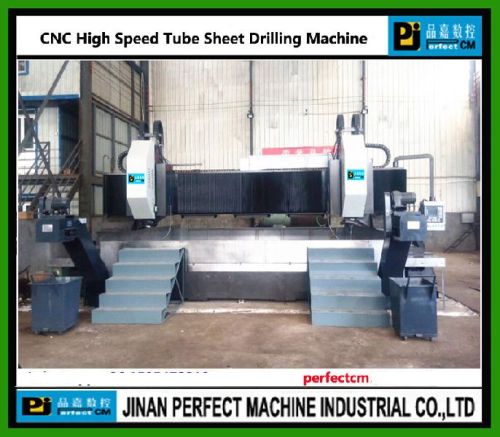

High Speed CNC Tube Sheet Drilling Machine

₹ 45 Lakh - ₹ 1.62 Cr / Units

MOQ1 Set(s)
Model NumberPD
Brand NamePERFECT
CertificationISO9001
Conditionnew
Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 12 Years
Nature of Business Supplier
Year of Establishment 2002

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Model NumberPD
Brand NamePERFECT
CertificationISO9001
Conditionnew
Place of OriginChina
After-Sales Service ProvidedYES
Drilling Speed3000rpm
Tube Sheet Drilling MachineDrilling machine
heat exchangerpressure vessels

We are offering high speed cnc tube sheet drilling machine
applicable industry:
used for the drilling processing for steel, stainless steel and composite material. It is mainly used for drilling (including blind holes) process of the tube plate, baffle plate in petrochemical machinery, air condenser, heat exchanger etc. And large flange manufacturing, and also for joint plates in building, bridge, iron tower, etc.
technical data, please check the following form:
name of parameter item value
max. Distance between hole centers length width 50005000mm
max. Thickness of workpiece 250mm
worktable width of t-slot 28mm
vertical ram type drilling head quantity 2
morse taper bt50
max .drilling diameter. (normal carbon steel) 40mm(carbide drill head)
50mm(high-speed steel twist drilling head
drill depthdrill diameter 5(carbide drill head)
rotation speed of spindle(stepless frequency conversion) 30_2400rmin
motor power of spindle 222kw
max. Output torque of spindle(n 600rmin) 360nm
distance between bottom surface of spindle and worktable 260-760mm
longitudinal movement of gantry (x axis) max. Stroke 5000mm
we welcome customers to visit our factory at any time. No wait, please order now!
JINAN PERFECT MACHINE INDUSTRIAL CO.,LTD
